Electrospray 101: What to Know About LC-MS Sources – and a First Look at Optispray

1. What exactly is a “source” in mass spectrometry?

Whether you’re running LC-MS, imaging-MS, or native-MS, the ion source is where molecules leave the chromatograph, capillary, or sample stage and become charged gas-phase particles that the mass spectrometer can detect. The source you choose governs the kinds of compounds you’ll see, the flow rates you can use, and the robustness you can expect from run to run.

Sources fall into two broad families:

• Vacuum ionization: Electron ionization (EI), fast-atom bombardment (FAB), and traditional MALDI create ions inside the instrument’s evacuated housing.
• Atmospheric-pressure ionization (API): Electrospray (ESI), atmospheric-pressure chemical ionization (APCI), atmospheric-pressure photo-ionization (APPI), and today’s atmospheric-pressure MALDI (AP-MALDI) generate ions in open air and then guide them through an interface into vacuum.

Learn more about Ionization methods here: Ionization Source Technology Overview | Thermo Fisher Scientific – US

2. Why electrospray changed the game

In 1988 John B. Fenn demonstrated that a fine, high-voltage spray could coax intact proteins into the gas phase (see figure). The work earned a share of the 2002 Nobel Prize in Chemistry. Because electrospray produces multiply charged ions, large biomolecules fit within the m/z window of modern analyzers. That single insight opened the door to:

• Bottom-up and top-down proteomics
• Metabolomics and lipidomics
• Native MS of protein complexes and antibodies
• Targeted quantitation in clinical and environmental labs

ESI also adapts to nearly any flow- from nanoliters to milliliters- via variants like nanoESI, capillaryESI, and heated ESI (HESI).

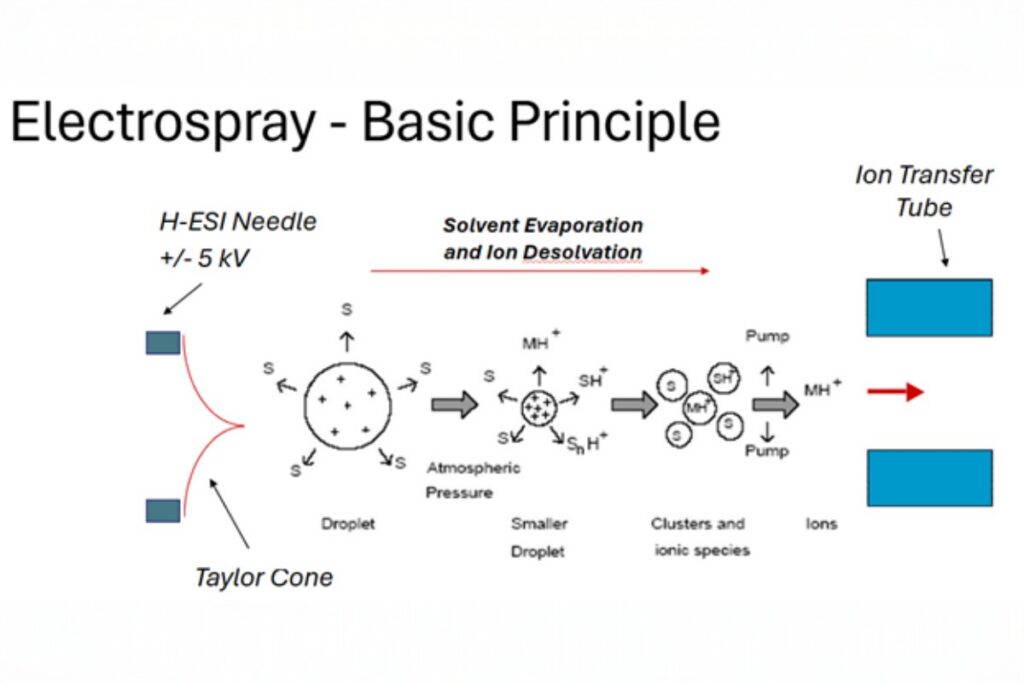

Basic principle of electrospray ionization. A high-voltage needle forms a fine spray of charged droplets that shrink through solvent evaporation, releasing gas-phase ions for mass spectrometry.

3. Putting ESI sources to work on a Thermo Scientific platform

If you have ever run a proteomics experiment on Thermo Scientific mass spectrometry solution, you have already handled at least two ESI sources:

• Thermo Scientific OptaMax NG ion source or Thermo Scientific OptaMax Plus ion source with the Thermo Scientific Heated Electrospray Ionization (HESI-II) Probe – easy installation into the MS face, this robust family of sources, paired with adaptable HESI-II probes, supports a wide range of flow rates from 1 – 2,000 µL/min, providing flexibility for various applications. Most proteomics laboratories use it for calibrations or quick QC injections: direct-infuse a Pierce FlexMix solution through the HESI probe and the instrument can calibrate to sub-ppm accuracy
• Thermo Scientific EASY-spray  source or Thermo Scientific NanoSpray Flex ion source – once calibration is complete, the OptaMax ion source comes off and a low-flow source goes on. Thermo Scientific EASY-Spray HPLC columns combine LC column, liquid junction, and emitter in a single finger-tight connection, eliminiating dead volume and manual x-axis alignment. The NanoSpray Flex offers emitter and geometry control, providing flexibility for method development when custom configurations are needed.

In a routine bottom-up proteomics run, you might equilibrate an EASY-Spray column on the Thermo Scientific Vanquish Neo UHPLC, calibrate the mass spectrometer using the OptaMax NG ion source fitted with HESI-II probe, then swap to an EASY-spray source loaded with your nanoLC column, and finally acquire a 30-minute DIA gradient on an Orbitrap Astral Zoom mass spectrometer- never touching the mass spectrometer itself, only exchanging the front-end source.

4. Alternate source spotlight: Native MS with static nano-spray

Electrospray isn’t limited to peptide gradients. In native MS the goal is to perform mass analysis on intact, non-denatured molecules- virus capsids, ribosomal subunits, even 10 MDa gene-therapy assemblies- without the salts and organic solvents required by LC. Here the workhorse is static nano-spray: load <5 uL of volatile, salt-stripped buffer into a pre-conductive tip, let capillary action deliver a < 50 nL/min plume straight into the MS inlet, and- because the analyte never touches a column- fragile complexes stay together long enough for high-resolution mass spectrometry analysis. The Nanospray Flex ion source with the Offline Nano Electrospray kit makes difficult-to-analyze native applications compatible with state of the art mass spectrometry. For example, it is often coupled with the Thermo Scientific QExactive UHMR mass spectrometer and the Thermo Scientific Orbitrap Ascend Structural Biology Tribrid mass spectrometer.

Static nano-spray highlights how choosing the right ion source- and the right accessories- opens new analytical spaces.

5. Pain points in low-flow ESI- and why they matter

Nano- and capillary-flow ESI deliver exquisite sensitivity but can frustrate even experienced users:

• Manual emitter alignment is operator-dependent
• Dead volume between column, junction, and emitter broadens peak
• Emitter wear forces frequent replacements and re-tuning

For large-scale studies and labs with constant mass spectrometry up-time, that variability translates into lost samples, inconsistent quantitation, and extra QC overhead

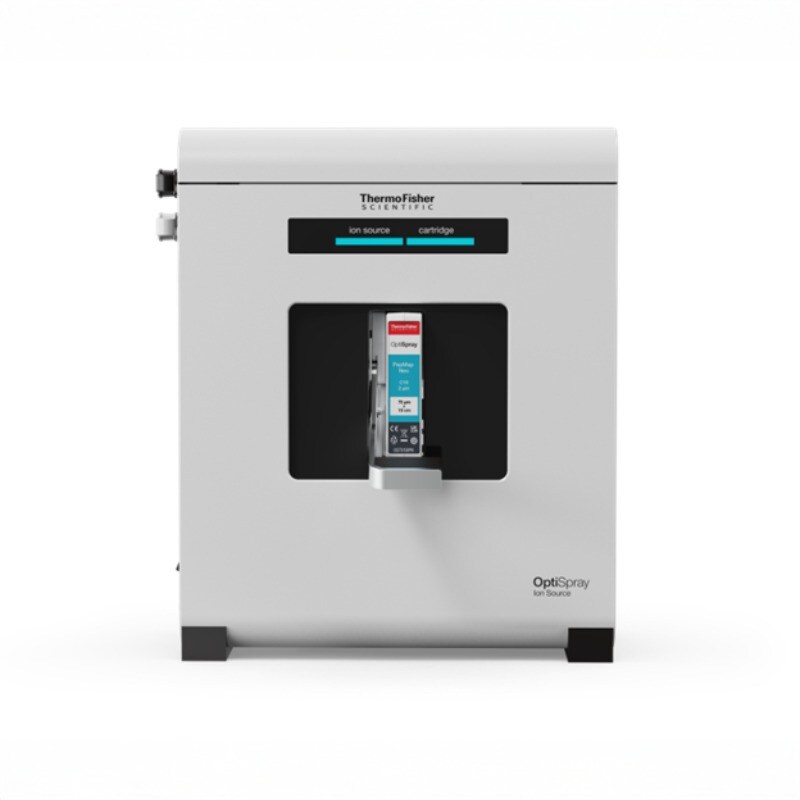

6. Enter breaking technology: The Thermo Scientific OptiSpray Technology provides automated nano- and capillary-flow success

Unveiled at ASMS 2025, the OptiSpray technology- including the Thermo Scientific OptiSpray ion source and Thermo Scientific OptiSpray cartridge- tackles these challenges head-on:

• Motorized 3D alignment runs a “quick” (<3 minute) or “full” optimization routine that centers the spray plume on the inlet- no rulers, no guesswork, same result no matter who is installing the column.
• Easy installation with cartridge-based consumables with integrated column, junction and emitter in a single unit. Choose the Thermo Scientific EASY-Spray PepMap Neo UHPLC column or Thermo Scientific μPAC Neo HPLC Columns- just click in the cartridge, pull the handle down, click once, and you are plumbed.
• Emitter options for capillary or nanoflow two emitters—one that is tapered and is designed for capillary flow rates, and one that is pulled and is designed for nanoflow rates.
• Visualization of emitter and spray provides confidence in spray stability and visualization of spray disturbances.
• Platform compatibility The OptiSpray ion source docks directly on the Thermo Scientific Orbitrap Astral MS series, Thermo Scientific Orbitrap Tribrid MS series, Thermo Scientific Orbitrap Exploris MS series, the Thermo Scientific Orbitrap Excedion Pro MS, and the Thermo Scientific Stellar MS, and pairs seamlessly with Thermo Scientific FAIMS Pro Duo interface- the automated alignment finds the emitter’s “sweet spot” in front of FAIMS Pro Duo interface for you.
• Wide flow window (50 nl – 10 uL/min) means one source covers discovery DIA at 300 nl/min and high-throughput PRM at a few uL/min.
• Proven robustness Early robustness data show >2,000 HeLa digest injections with <10% CV in peptide identifications.

How OptiSpray technology helps: automated emitter alignment levels the playing field between new and experienced users, cutting out training time and human-introduced variability. Further, the sealed cartridge prevents carry-over and dead-volume inconsistencies. The result is reproducible, low-flow data, batch after batch, lab after lab, no matter who installs the column.

7. Take home messages

• Ion sources are the gatekeepers of detection. Choosing vacuum vs atmospheric- and within API, ESI vs APCI/APPI- dictates what you can detect.
• Electrospray is the backbone of omics. Multiply charged ions bring biomolecules into reach of high-resolution mass analyzes, earning a Nobel nod and dominating modern workflows.
• OptiSpray streamlines low-flow operation by automating emitter positioning and eliminating manual alignment, enabling consistent, high-sensitivity data across users and experiments.

Questions about fitting the right source to your application? Contact us or explore the ASMS 2025 resource hub for application notes, workflow posters, and customer testimonials.
