NovaFluor Red 700 dye

NovaFluor dyes, including NovaFluor Red 700 dye, are built using Phiton technology and are compatible with both spectral flow cytometry, as well as traditional flow cytometry. NovaFluor dyes exhibit narrow emission spectra and minimal cross-laser excitation, reducing spectral spillover for better marker resolution. In addition, their unique spectral signatures can provide the opportunity to detect additional markers in flow cytometry panels by opening up previously unusable channels.

NovaFluor Red 700 dye is ~6 times brighter than APC-Cyanine 5.5 and Alexa Fluor 680 dye. In complex multicolor flow cytometry panels, NovaFluor Red 700 dye can be used to fill the spectral gap between Alexa Fluor 647 and Alexa Fluor 700 dyes. The macromolecule-based NovaFluor Red 700 dye produces highly stable fluorescence, and stained samples retain their fluorescence intensity and spectral signature when stored at 4°C.

Benefits of NovaFluor Red 700 dye:

  • Narrow emission spectrum and minimal cross-laser excitation for better resolution
  • Bright fluorescence allows it to be paired with medium-to-low abundance antigens
  • Can be used to fill the spectra gap between Alexa Fluor 647 and Alexa Fluor 700 dyes
  • Can be used in a flow cytometry panel with NovaFluor Red 660 (or APC-Alexa Fluor 647) and Alexa Fluor 700 dyes
  • Produces highly stable fluorescence and is compatible with all buffers tested

Use NovaFluor dyes with CellBlox Monocyte and Macrophage Blocking Buffer to block non-specific binding of NovaFluor labels, PE and APC tandems observed with macrophages and monocytes.

NovaFluor Red 700 dye dashboard


Initial brightness







Photostability in buffer





 640639700

Laser line
Excitation max
Emission max

NovaFluor Red 700 dye products

We offer NovaFluor dyes conjugated to primary antibodies for use in flow cytometry, as well as NovaFluor Antibody Conjugation Kits, NovaFluor CD4 Label Characterization Kits, and custom conjugation services.

Learn more here:

Experimental data using NovaFluor Red 700 dye products

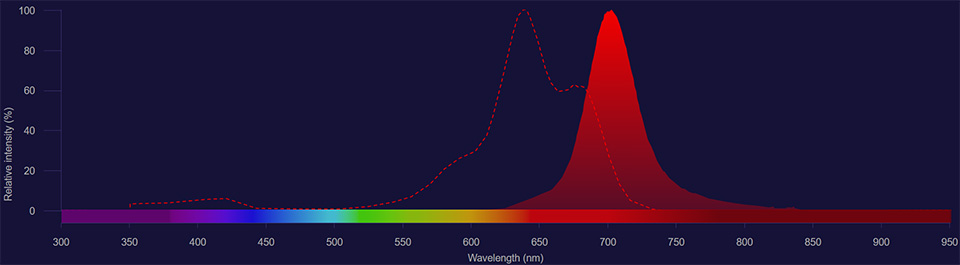

Figure 1. Absorption and fluorescence emission spectra of NovaFluor Red 700 dye.

Graph of fluorescence intensity vs channel for NovaFluor Red 700 dye
Figure 2. Spectral signature of NovaFluor Red 700 dye. Normal human peripheral blood cells stained with anti-CD4 antibodies (clone SK3) conjugated to NovaFluor Red 700 dye were used for analysis. Data was acquired on a 5-laser Cytek Aurora system.
Side scatter plot with unstained and CD3 NovaFluor Red 700 dye-stained normal human PBMCs

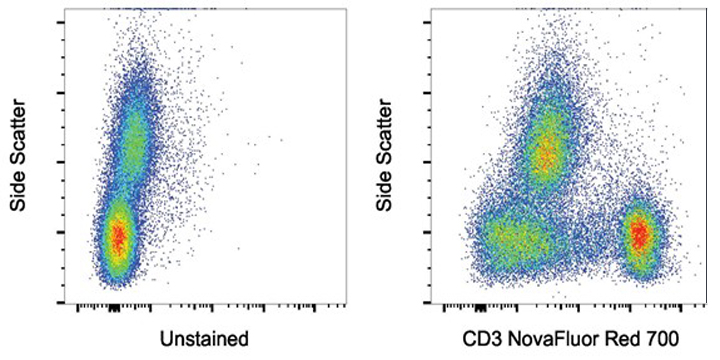

Figure 3. Staining of normal human peripheral blood cells with side scatter and unstained (left) or CD3 Monoclonal Antibody, NovaFluor Red 700 (Cat. No. H002T03R03) (right). Data was acquired in the R3 channel on a 5-laser Cytek Aurora system, and singlet cells were used for analysis.
