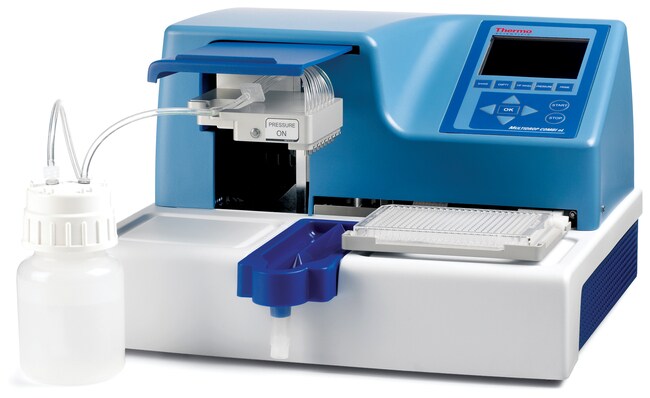

Multidrop™ Combi nL 试剂分液器，50 nL 至 50 μL

Thermo Scientific™ Multidrop™ Combi nL 试剂分液器能够为所有实验室提供准确、一致的高通量分液，体积范围为 50 nL 至 50 μL。

货号	容积（公制）
5840400	50 nL 至 50 μL

货号 5840400

价格（CNY)

容积（公制）:

50 nL 至 50 μL

Thermo Scientific™ Multidrop™ Combi nL 试剂分液器为所有实验室提供精确、一致的高通量分液。Combi nL 是一款纳升到微升级体积的大容量试剂分液器，体积范围为 50 nL 到 50 μL。它扩展了市场领先 Multidrop 产品系列，使药物实验室和生物技术实验室能够轻松获得精准、准确且可靠的低量分液。

主要特点：

可以将体积为 50 nL - 50 μL 的溶液以较低体积分液至 96、384 和 1536 孔板中
得到高质量检测数据
高度灵活—能够以不同高度重复分液至微孔板，使用户能够通过易用的 FILLit 软件填充任意行、列或孔
轻松分液—可视化、图标式板载用户界面使所有功能都能方便的设置、使用和维护
降低试剂成本—低体积分液，极小死体积和反冲功能可极大程度地减少珍贵试剂的使用量
高通量—快速分液结合全面的自动化设备兼容性可确保为需要低体积检测形式的实验室增加检测通量

建议用于：

检测开发；初级和次级筛选；基因组学和蛋白质组学研究；PCR 设置；测序设置；基于细胞的检测

准确度<1µL：±5%
>1µL：±2%

深度（英制）14.8 in.

深度（公制）37.5 cm

描述Multidrop Combi nL 低量试剂分液器

高度（英制）8.6 in.

高度（公制）22 cm

增量50-999 nL 以 1 nL 为增量，1.00-9.99 µL 以 10 nL 为增量，10.0-50.0 µL 以 100 nL 为增量，FILLit 软件以 1 nL 为增量

界面RS-232 串行端口，USB 端口

板类型96、384 和 1536 孔板

精确度50 nL：CV≤10%，0.5μL：CV≤5%，1-10μL：CV≤4%，>10μL：CV≤2%

速度384 孔板：6 秒 50 nL，8 秒 1 µL，1536 孔板：21 秒 50 nL，27 秒 1 µL

死区体积（公制）<1.2 mL

重量（英制）21.2 lb.

重量（公制）9.6 kg

宽度（英制）14 in.

宽度（公制）35.5 cm

产品类型试剂分液器

容积（公制）50 nL 至 50 μL

Unit SizeEach

常见问题解答 (FAQ)

Are the Multidrop Combi reagent dispensers compatible with Momentum Workflow Scheduling Software?

Yes, the Multidrop Combi reagent dispensers are compatible with the Momentum Software and can be integrated into automated workflow platforms. If you are planning to set up an automated workflow using the Momentum Software, you will also need a microplate mover such as the Orbitor RS2 Microplate Mover, Spinnaker Microplate Robot, or Spinnaker 3 Microplate Mover.

Do Multidrop Combi Reagent Dispensers (Cat. Nos. 58403xx and 58404xx) come with a laptop?

No, Multidrop Combi Reagent Dispensers are not sold with a laptop. This would need to be purchased separately. You can also use your own laptop or PC, as long as it meets the minimum PC requirements outlined in the Thermo Scientific FILLit Software for Multidrop Combi User Manual (pg 15).

When should I use the Versette Automated Liquid Handler vs. the Multidrop Combi Reagent Dispenser?

The Versette Automated Liquid Handler is the perfect solution for applications that require aspiration of liquid, plate transfers/reformatting, mixing, serial dilutions, and other common plate preparations performed using hand held pipettes in the lab.

The Multidrop Combi Reagent Dispenser should be used for fast bulk reagent dispensing and plate preparation.

I have an old spare valve which does not have any valve correction factor enclosed. Can I still use it?

Yes, old spare valves do not have this correction factor and the default value 0 is correct. If an old valve replaces the newer version, the correction factor needs to be set to value 0.

Do I need to recalibrate the instrument when a dispensing valve is changed?

No, you do not have to recalibrate the instrument, because the valve performance is so consistent. However you must apply the valve correction factor to the instrument through the FillIt software.

View all Multidrop™ Combi nL 试剂分液器，50 nL 至 50 μL FAQs
