Specifications
Certifications/ComplianceEN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15
Controller TypeMicroprocessor

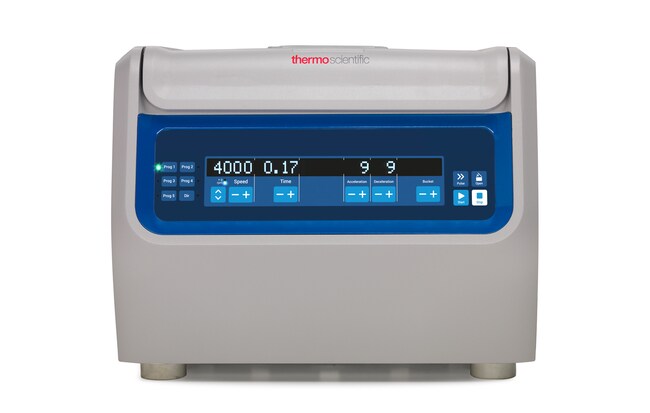

DescriptionSorvall ST1 Plus TX-400 Tissue Culture Package
DisplayPush button and high contrast LCD interface
Drive SystemDirect, brushless induction low profile motor
Frequency50/60Hz
Green FeaturesLess waste, Energy efficient
Includes- 75016030 Tissue Culture Package Includes
- 75009740 ST1 Centrifuge
- 75003181 TX-400 Rotor
- 75003655 400mL Round Buckets (set of 4)
- 75003656 ClickSeal Biocontainment Lids (set of 4)
- 75003682 15 mL Conical Tube Adapters (set of 4)
- 75003683 50 mL Conical Tube Adapters (set of 4)
MaterialSee individual centrifuge, rotor and accessory data
ModelGeneral Use Only
Net WeightSee individual components of package
Profile (Acceleration/Braking)Choices of 9 Accel/10 Decel Rates
Program StorageUp to 6 run programs
RotorTissue Package Includes TX-400 with Buckets, ClickSeal Biocontainment Lids, 15 mL and 50 mL Conical Tube Adapters
Rotor IncludedYes
Run TimeMax 9h, 59 min; also with continuous and pulse modes
StandardsISO 14971, ISO 13485, ISO 9001
TimerCount down only in increments of 1 second (from 9 min 59 seconds) and in increments of 1 minute (>10 min)
TypeBenchtop Centrifuge
VentilatedYes
Voltage100/115/220/230 V
WarrantyCentrifuge: 5 Year Limited, Rotor: See Manual
Capacity16 x 50 mL conical tubes, 36 x 15 mL conical tubes with TX-400
Max. RCF4,696 x g
Max. Speed5,000 rpm
RefrigeratedNo
Unit SizeEach
