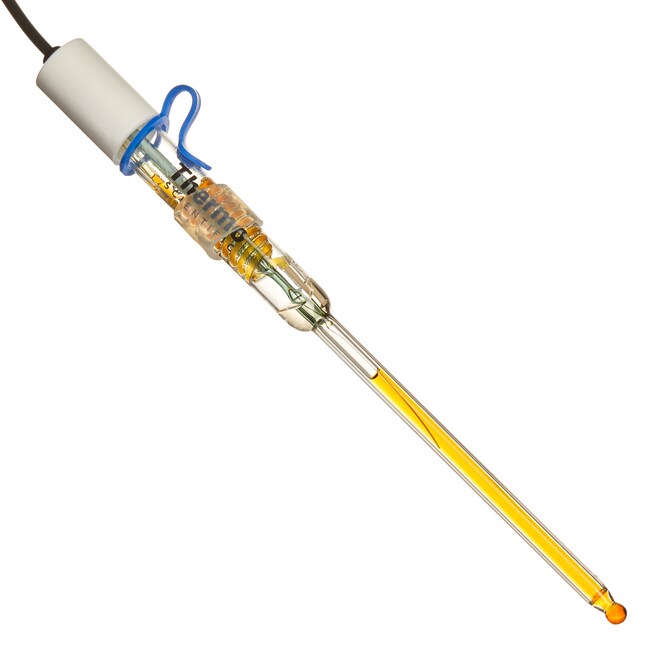

Orion™ ROSS™ Thin Stem Glass Bodied Combination pH Electrode

Top-performance, semi-micro pH electrodes to measure samples as small as 0.2 mL.
Have Questions?
Catalog NumberConnector Types
8103BNBNC
Catalog number 8103BN
Price (CNY)
-
Connector Types:
BNC
Thermo Scientific™ Orion™ ROSS Glass Semi-Micro Electrodes provide optimum accuracy and unmatched response in samples of varying temperatures. They are available in chemically resistant glass bodies and are best suited for measuring samples in test tube and small containers.

Orion™ ROSS Electrodes provide rapid accuracy and temperature response which goes hand in hand with the excellent stability of this reference system. Compatible with samples containing organic compounds, Tris buffers, enzymes, proteins, heavy metals, and other compounds.

Solutions required
Electrode fill solution
810007     ROSS pH electrode fill solution, 5 x 60 mL bottles

Electrode storage solution
810001     ROSS pH electrode storage solution, 475 mL bottle

pH buffers
910168     pH 1.68 buffer, NIST traceable, 475 mL
910104     pH 4.01 buffer, color coded red, NIST traceable, 475 mL
910105     pH 5.00 buffer, color coded orange, NIST traceable, 475 mL
910686     pH 6.86 buffer, DIN standard, NIST traceable, 475 mL
910107     pH 7.00 buffer, color coded yellow, NIST traceable, 475 mL
910918     pH 9.18 buffer, DIN standard, NIST traceable, 475 mL
910110     pH 10.01 buffer, color coded blue, NIST traceable, 475 mL
910112     pH 12.46 buffer, NIST traceable, 475 mL
810199     All-in-One ROSS pH buffer kit, includes pH 4.01, 7.00 and 10.01 buffers, 475ml each ROSS pH
                 electrode storage solution, 475 ml, pH electrode cleaning solution C, 30 ml and 12 mm electrode
                 storage bottle

pH cleaning solution kit
900020     Cleaning solution A and C, 30 ml each. B and D, 60 ml each

Items included with
810007     ROSS pH electrode fill solution 60 mL 1 bottle

Warranty period
12 months from date of purchase
Specifications
DescriptionSemi micro tip
Diameter (Metric) Cap16 mm x 95 mm L
Drift<0.002pH/day
Filling Solution Type3M KCl
For Use With (Equipment)Standard pH Meter, BNC connector
Internal ReferenceROSS
Length (English)6.5 in.
Length (Metric)165 mm
Precision0.01
Storage RequirementsTo ensure a quick response and free flowing junction, the sensing bulb and reference junction must not dry out. Short-term Storage (up to one week): Soak the electrode in ROSS' pH electrode storage solution, Cat. No. 810001. Long Term Storage (more than one week): Fill the reference chamber and securely cover the fill hole. Cover the sensing bulb and reference junction with the protective cap, sleeve or storage bottle containing a few drops of storage solution.
Temperature (English) Operating32°F to 212°F
Connector TypesBNC
JunctionCeramic
MaterialGlass Body
Temperature (Metric) Operating0°C to 100°C
TypeCombination Semi-micro pH Electrode, BNC connector
pH Range0 to 14
Unit SizeEach
