Thermo Scientific™

Niton™ Apollo™ 手持式 LIBS 分析器

当碳检测和便携性作为首要考虑的问题时,Niton™ Apollo™ 手持式 LIBS 分析器是工业企业值得信赖的选择。
Have Questions?
货号 NITONAPOLLO
价格(CNY)
-
申请报价

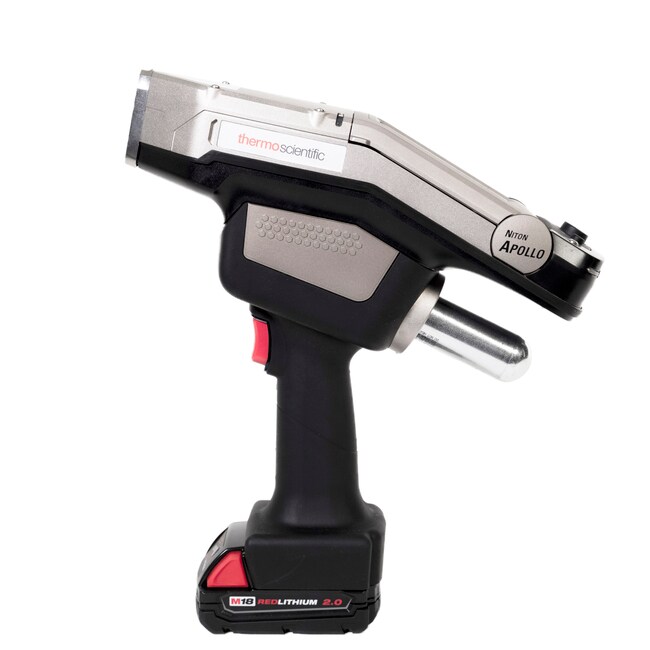

使用 Thermo Scientific™ Niton™ Apollo™ 手持式 LIBS 分析器进行可靠的元素分析。当碳检测和便携性作为首要考虑的问题时,Niton Apollo的卓越性能可帮助工业企业提高生产力。Niton Apollo可分析低合金钢/碳钢、不锈钢并且可以区分L级和H级钢材。Niton Apollo将传统的推车式发射光谱(OES)系统转变为一个小巧、便携且易于使用的手持式分析仪。

特点 & 优点

  • 1064nm 激光
  • 支持 WiFi
  • 配有微观和宏观双摄像头
  • 热插拔电池(Milwaukee™ 兼容)
  • 可倾斜的彩色触摸屏
  • 双操作方式,物理键盘配合触摸屏
  • 压力感应、光谱信号感应、光线明/暗感应,三重安全联锁装置
  • 密码安全保护
  • IP54 认证(防溅/防尘)

应用

  • 确定各种冶金样品的合金成分和等级
  • 计算碳当量以确定管道可焊性
  • 检验关键资产,如管道、阀门和反应容器,进行精确材料鉴定(PMI)
  • 在到货、生产过程中和出库质量控制(QC)时对材料进行检查
  • 验证材料测试报告(MTR)
  • 防止受污染废料进入供应流
  • 检测游离元素和微量元素,确保产品符合监管标准
常见问题
规格
分析范围C、Al、Si、Ti、V、Cr、Mn、Fe、Co、Ni、Cu、Nb、Mo、W
氩气使用高纯氩气吹扫
每个纯化柱支持约 200 次分析
可用分析模式低合金/碳素钢,不锈钢
Bluetooth蓝牙 4.0(支持打印功能)
相机集成的 CCD 宏观摄像机用于捕获零件的概述图像并标记测量位置
集成的 CCD 微观摄像机,用于定位和记录测量位置。
认证/合规
认证:经 IP54 认证(防水和防尘)
合规性:CE,RoHS,FCC,加拿大工业部,IEC 61010-1:2010 安全条例
数据录入触摸屏键盘
用户可自定义数据输入
数据存储器512 MB 系统内存/16 GB 工业级存储
可存储大约 5,000 个含光谱信息的读数(如果保存了宏观和微观图像则数量相应减少一些)
数据传输WiFi、USB
描述Niton Apollo 手持式 LIBS 分析器
尺寸(长 x 宽 x 高)12 x 13 x 4 in (30.48 x 33.02 x 10.16 cm)
显示类型可倾斜彩色电阻式触摸屏显示器
全球定位系统内部 GPS(样品信息中包含坐标信息)
语言英文
激光器1064nm
基于 SAE、AISI、ASTM、AA、DIN、GB 标准的默认合金库
用户可以创建、复制和编辑库
许可依地区而定。请联系当地经销商。
运行环境温度:32°F - 104°F (0°C - 40°C)
操作系统Linux
可选配件Thermo Scientific™ 大容量氩适配器
额外激光护目镜
功耗24V、3.75A、90W 电源,Milwaukee™ 电池组
支持热插拔功能,更换电池时分析器无需关机
安全特性压力感应、光谱信号感应、光线明/暗感应,三重安全联锁装置
安全特性通过密码保护实现用户安全
软件支持软件:NitonConnect PC 软件
标配配件可锁定的防护式便携箱
两 (2) 个 Milwaukee™ M18™ Redlithium™ High Demand™ CP2.0 电池组
一 (1) 个 Milwaukee™ M18™& M12™ 多电压充电器
五 (5) 个 Thermo Scientific™ 分析的氩气罐
设置标准
激光护目镜
仪器清洁套件
安全绳和安全钩
PC 连接线缆
重量(英制)6.4 lb(含电池)
重量(公制)2.9 kg(含电池)
应用可鉴别合金/碳素钢且可鉴别 L 级和 H 级钢材
Unit SizeEach

常见问题解答 (FAQ)

What is included when I purchase the Niton Apollo Handheld LIBS Analyzer?

The Niton Apollo Handheld LIBS Analyzer comes with the following accessories:

- Locking shielded carrying case
- Two (2) Milwaukee M18 Redlithium High Demand CP2.0 Battery Packs
- One (1) Milwaukee M18 & M12 Multi-Voltage Charger
- Thermo Scientific analytical argon
- Setup standards
- Laser safety glasses
- Instrument cleaning kit
- Safety lanyard and carabiner
- PC connection cable

Is the Niton Apollo Handheld LIBS Analyzer splash and dust proof?

The Niton Apollo Handheld LIBS Analyzer is IP54 certified, meaning that it is sealed against moisture and dust. The splash and dust proof design ensures uninterrupted operation and worry-free use virtually anywhere.

What languages are supported on the Niton Apollo Handheld LIBS Analyzer?

At this time, the Niton Apollo Handheld LIBS Analyzer supports English only. Additional languages will be added in the future. Be sure to check back frequently as we make continuous updates to the Niton Apollo analyzer.

What type of maintenance is required for the Niton Apollo Handheld LIBS Analyzer?

Regular maintenance is vital to ensuring that the Niton Apollo Handheld LIBS Analyzer produces the most analytically accurate outcomes. Maintenance includes daily setup procedures, instrument cleaning, and annual calibration certification.

Daily Set-Up Procedures - serve to normalize the analyzer and include a wave and sensitivity check. It is recommended that “daily set-up” be completed every 8 hr shift.

Instrument Cleaning - removes metal particles from the optic windows to prevent the possibility of signal throughput becoming degraded. It is recommended that instrument cleaning be performed every 1,000 readings. Learn more about instrument cleaning here (https://bcove.video/2BcGJ80).

Annual Calibration Certification - your analyzer comes back to the factory for inspection by our certified technicians. Our team verifies the analytical performance of your analyzer - if necessary, it will be re-calibrated to ensure proper functionality. You will also obtain a certificate (good for one year) stating that your calibration is in proper working order.

Is the Niton Apollo Handheld LIBS Analyzer WiFi enabled?

Yes, Niton Apollo Handheld LIBS Analyzer users can remotely export readings to their network share. Once a connection is established, users can manually or automatically export a CSV file to their network share and bypass steps associated with data extraction using NitonConnect.
