Thermo Scientific™

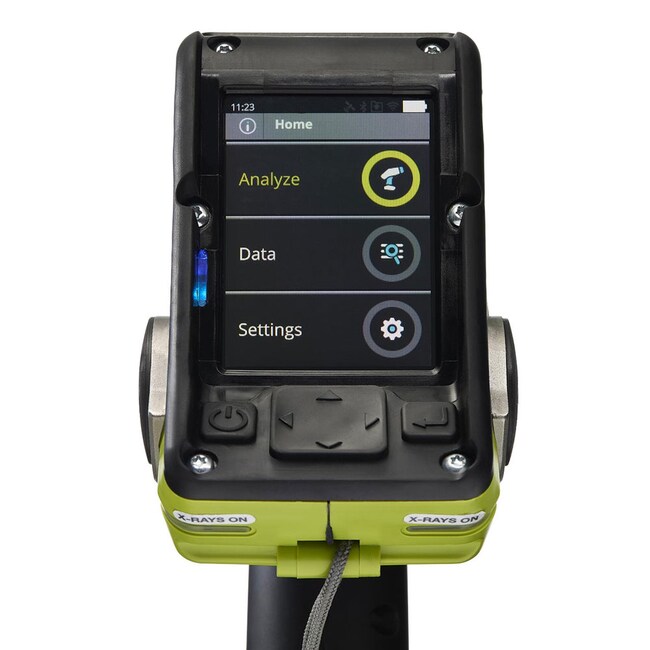

Niton XL5e Handheld XRF Analyzer

Perform elemental analysis swiftly with the Niton XL5e Handheld XRF analyzer. Ergonomic and Wi-Fi enabled, the Niton XL5e puts high-end detection within reach.
Have Questions?
Catalog number NITONXL5E
Price (CNY)
-
Request A Quote
Conduct elemental analysis with speed and accuracy using the Thermo Scientific Niton XL5e Handheld XRF Analyzer. This advanced instrument offers powerful detection capabilities, delivering precise results quickly. Designed with excellent ergonomics for long shifts, this model features modern software for easy reporting and internal Wi-Fi for improved connectivity.

Key Features

  • 5W X-ray tube
  • Lightweight design (2.8 lbs/ 1.3 kg)
  • Integrated fan for thermal management
  • Bluetooth and WiFi communications
  • Micro camera
  • Hot swap battery
  • Color touchscreen
  • Password-protected security
  • IP54 certified (splash/dust proof)

Applications

  • Verification of metals and alloys in manufacturing operations
  • Non-destructive field inspections for positive material identification
  • Point-and-shoot sorting at scrap recycling operations
  • Real-time geochemical analysis for mining exploration
  • On-site heavy metal screening of polluted soils

Available modes

  • Light Metal Quick Sort (Scrap)
  • General Metals
  • Soil
  • Mining
  • Plastics
Specifications
Certifications/ComplianceCE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010
Data EntryTouchscreen keyboard, user-customizable data entry, optional wireless remote barcode reader
Data Storage512 MB internal system memory / 16 GB industrial grade storage; Stores approximately 130,000 readings with spectra
Data TransferWiFi, USB-C
Dimensions (L x W x H)9.54 x 8.19 x 2.67 in (242.56 x 208.17 x 67.90 mm)
Display TypeFixed, color, resistive touchscreen display
Global Positioning SystemSupported via optional external GPS (via Bluetooth)
IP RatingIP54
LanguagesEnglish, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian
LibrariesDefault alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards; Users may create, clone and edit libraries
LicensingVaries by region. Contact your local distributor.
Operating EnvironmentTemperature: -10°C to 50°C, Humidity: 10% to 90% relative humidity non-condensing
Operating SystemLinux
Optional AccessoriesPortable test stand, Mini test stand, Hotwork stand-off, Soil guard, Bluetooth printer
Power Consumption12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply; Hot swap functionality
Security FeaturesPassword-protected user security
SoftwareNitonConnect PC software
Spot Size8mm collimation
Standard AccessoriesLocking shielded carrying case, Two (2) lithium-ion battery packs, One (1) 110/220 VAC battery charger/AC adapter, Check samples, Safety lanyard, PC connection cable (USB)
System DetailsBuilt-in standardization and health check verifies system integrity
Weight (English)2.8 lbs with battery
Weight (Metric)1.3 kg with battery
X-Ray Source TypeAg anode (6-50kV, 0-500uA, 5W max)
ApplicationsElemental analysis for: metals and alloys, geological and soil samples, plastics
Tube Voltage50 kV
Unit SizeEach
