Thermo Scientific™

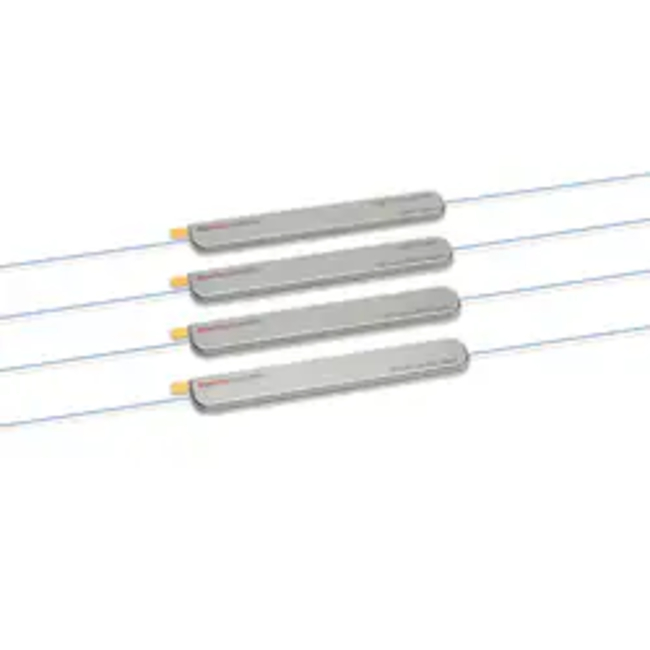

OptiSpray uPAC Neo C18 Capillary High Throughput Cartridge Column
Designed for fast, high-throughput LC-MS workflows. Its microfabricated separation technology delivers high reproducibility, robust performance, and efficient peptide separations for proteomics applications.
| 货号 | 粒径 |
|---|---|
| OS-UPAC005CAP | 2 μm |
货号 OS-UPAC005CAP
价格（CNY)
-
粒径:
2 μm
Designed for fast, high-throughput LC-MS workflows. Its microfabricated separation technology delivers high reproducibility, robust performance, and efficient peptide separations for proteomics applications.
- OptiSpray uPAC Neo C18 capillary cartridge with 50 mm separation length.
- Optimized for high-throughput proteomics and LC-MS workflows.
- Microfabricated separation technology provides exceptional reproducibility.
- Delivers efficient peptide separations and high chromatographic performance.
- Supports sensitive and reliable mass spectrometry analyses.
- Integrated cartridge format simplifies installation and operation.
规格
床长度5.5 cm
床宽度1850 μm
色谱柱格式OptiSpray
色谱柱类型Rectangular Micro Pillar Array
封端Yes
流速100 to 3000 nL/min.
适用于OptiSpray Ion Source
柱间距离2 μm
最大压力6526 psi (450 bar)
包装材料Silicon Chip
柱直径3 x 75 μm
柱长25 μm
固定相C18
温度60°C
容积（公制）1.5 μL
直径（公制）1.85 mm
长度（公制）50 mm
材质Stainless Steel
粒径2 μm
孔径100 to 300 Å
产品线nanoLC
技术HPLC
pH1.5 to 7
Unit SizeEach
