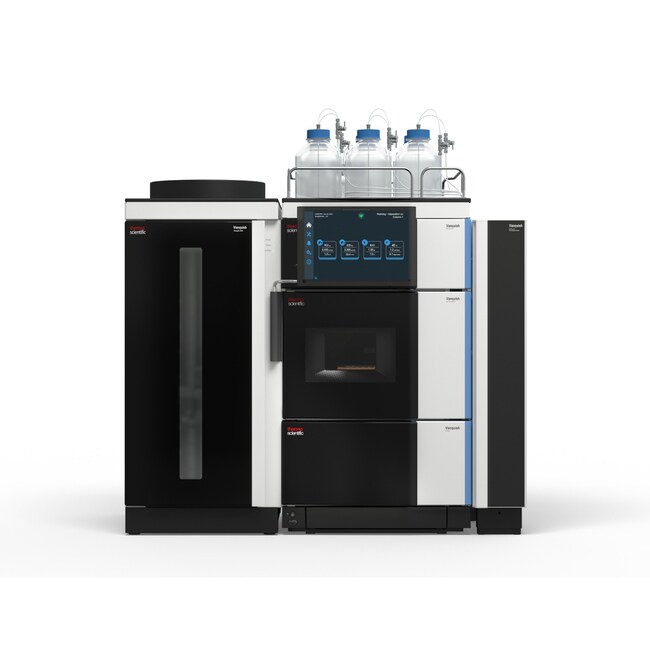

Vanquish™ Sample Hub

Increase sample capacity for extra-long unattended operation with an intelligent robotic that automates sample loading in the Thermo Scientific™ Vanquish™ UHPLC system.

货号	电压
VH-A91-A-01	100/240 V

货号 VH-A91-A-01

价格（CNY)

100/240 V

Employ an intelligent robotic that is fully integrated into the Thermo Scientific™ Vanquish™ UHPLC system with the Vanquish Sample Hub module. With a capacity of 8832 samples (23 well plates), the Sample Hub module automates sample loading into the Vanquish system for extra-long unattended operation. Environmental controls ensure reliable sample protection. A barcode reader automatically inventories each plate or rack within the device every time the door is closed, allowing users to add samples at anytime even while the Vanquish UHPLC system is in operation.

Huge sample capacity, reliable sample protection, intelligent
Monitor and manage an inventory of up to 9 sample racks, deep well plates, or 20 shallow well plates (15mm height) in SBS format
Take advantage of maximum sample integrity by innovative air-stream cooling, even in challenging environments
Gain full inventory management via barcode reading with empty shelf level detection and rack/well plate verification
Enjoy a familiar control environment with full integration into Thermo Scientific™ Dionex™ Chromeleon™ Chromatography Data System (CDS) software

GLP 特性All System Parameters Logged in The Chromeleon Chromatography Data System Audit Trail.

包括Barcode reading: Empty shelf level detection, Rack/well plate verification, Inventory management

总体深度（英制）24.4 in.

总体深度（公制）620 mm

总体高度（英制）31.7 in.

总体高度（公制）804 mm

总体宽度（英制）13.3 in.

总体宽度（公制）339 mm

PC 接口USB 2.0

安全特性Sample rack/well plate detection sensor on shovel, Barcode reader to detect sample rack/well plate type and shelf ID, Automatic stop when door is opened (interlock door switch), Automatic opening of door after power failure, 3 LEDs for status monitoring, Active evaporation system for condensation

温度范围4°C to 40°C (≥22 K Below Ambient (at <80% RH); Accuracy -2°C to +2°C (at 25°C, 50% RH); Stability ±0.5°C (at 25°C, 50% RH))

电压100/240 V

重量（公制）<38.5 kg

类型Vanquish Sample Hub Without Shelf and Racks

Unit SizeEach
