Thermo Scientific™

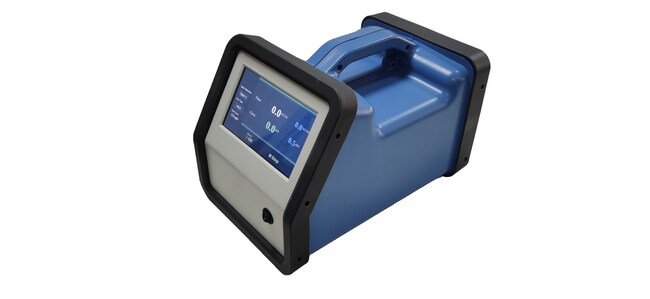

146i-GO Portable Gas Calibrator
The Thermo Scientific 146i-GO Portable Gas Calibrator offers flexible configuration 1: 1 to 1:2000 times dilution ratio to provide accurate concentration of sulfur dioxide, nitrogen oxides, nitrogen dioxide, carbon monoxide, methane and non-methane hydrocarbons or other gases.
| Catalog Number | Accuracy |
|---|---|
| 146I-GO | 0.5% ± reading (10-100% of full-range) |
Catalog number 146I-GO
Price (CNY)
-
Accuracy:
0.5% ± reading (10-100% of full-range)
The Thermo Scientific 146i-GO Portable Gas Calibrator is a high precision portable dynamic gas calibrator. Flexible configuration 1: 1 to 1:2000 times dilution ratio to provide accurate concentration of sulfur dioxide, nitrogen oxides, nitrogen dioxide, carbon monoxide, methane and non-methane hydrocarbons or other gases. Used for zero point calibration, cross point calibration and leakage of gas analyzer leak detection, linear verification, performance audit, etc.
- Support CEMS full calibration: calibration with pressure up to 50psi
- High accuracy: 0.50%
- Short heat engine time: the target accuracy can be achieved in 2 minutes
- High dilution ratio: the dilution ratio can reach 1:2000
- Fast gas distribution: proprietary algorithm, stable in 30 seconds
- Portable and reliable: the rubber package is designed to prevent collision and fall, and adapt to the harsh conditions on site
- Low power consumption: battery power supply can work more than 10 hours
Specifications
Accuracy0.5% ± reading (10-100% of full-range)
Dilution Ratios1:1 to 1:2000 depending on the quality flow controller
Electrical Requirements100-240 VAC@50/60Hz or DC: 12-24VDC 75
Temperature (English) Operating32°F to 113°F
Weight (English)8.8 lb.
Weight (Metric)4.0 kg
Response Time<1 min. at low traffic and 30 sec. faster at high traffic
Temperature (Metric) Operating0°C to 45°C
Unit SizeEach
