Diaphragm Pump HMD 4C

Three Step Chemical Pump for Drying (Caustic/Corrosive Vapours). Supplied Complete with All Necessary Tubing and Fittings to Connect to the Vacuum Oven.

Catalog Number	Flow Rate
50028362	3.0 m3/h

Catalog number 50028362

Price (CNY)

Flow Rate:

3.0 m3/h

Three Step Chemical Pump for Drying (Caustic/Corrosive Vapours). Supplied Complete with All Necessary Tubing and Fittings to Connect to the Vacuum Oven.

Ready to connect
Vacuum pump for vacuum drying ovens: quality, power and a long service life
Fully lined with PTFE and other fluorinated hydrocarbons
Functional design: integrated glass condensate trap, which empties quickly, and an emission condenser with cooling, supplied as standard

Specifications

ApplicationsFor Drying (Caustic/Corrosive Vapours)

Certifications/ComplianceCE certified

Dimensions (L x W x H)338 x 241 x 500 mm

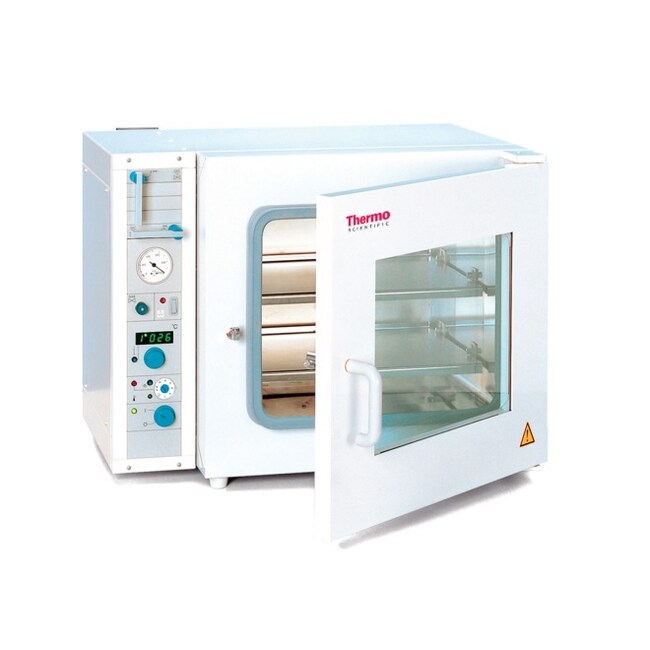

For Use With (Equipment)Vacutherm 6000 Ovens in Particular The BL Model

ModelHMD 4 C

Weight (Metric)18 kg

Enclosure RatingIP20

Flow Rate3.0 m3/h

Max. Vacuum3.20 kW

Maximum Pressure<10 Mbar final pressure with gas ballast

Pump TypeVacuum Pump

Voltage230 V

Unit SizeEach
