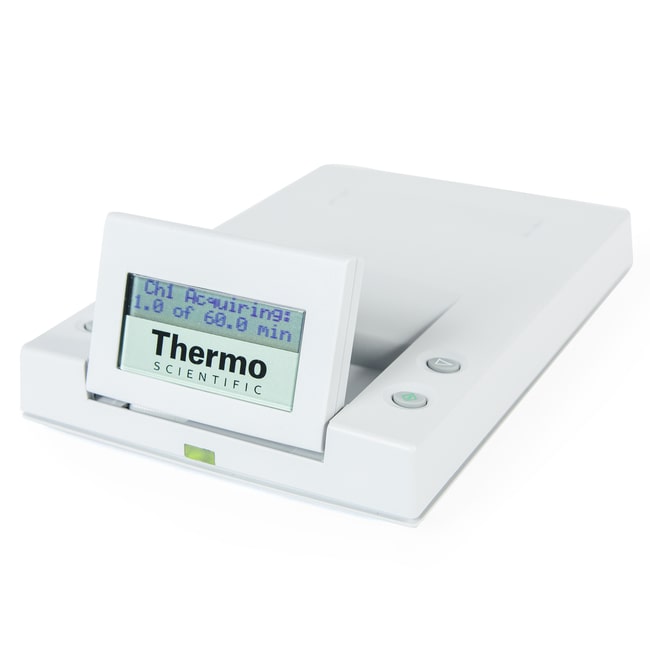

A2D Analog to USB Adapter

Collect data from older chromatography instruments and detectors that don't produce digital output. The Thermo Scientific™ A2D Analog to USB Adapter converts analog signals to digial from up to two instruments to digital for use by your Thermo Scientific™ Chromeleon™ Chromatography Data System (CDS). This adapter provides dual-channel, analog-to-digital conversion with data collection rates up to 1000 Hz per channel, which can extend the useful life of your hardware and standardize data collection into a single system.

• Built around a high-specification, 24-bit bipolar analog-to-digital converter
• Produces two data output channels for accurate and reliable data capture across a range of voltages
• Offers 11 data collection rate options from 1 to 1000 Hz with resolution as low as 0.1 μV to capture from the smallest to the largest peaks from any detector
• Ultra-low noise and exemplary linearity ensures the A2D faithfully represents even the narrowest peaks

• Clear two-line, multi-page LCD screen clearly displays information about the A2D device and each data channel
• Acquisition state LED shows at a glance the acquisition state of sequences running on either A2D channel

• Connected and powered via a single USB cable
• Place the A2D close to your instruments without taking up valuable bench space

• Via USB to an IPC or 247 Instrument Controller
• Eight potential-free relays to switch a range of external hardware devices like an autosampler or gas-sampling valve
• Eight TTL inputs to inform Chromeleon CDS about external events, which can be captured and handled in the Chromeleon Instrument Method
