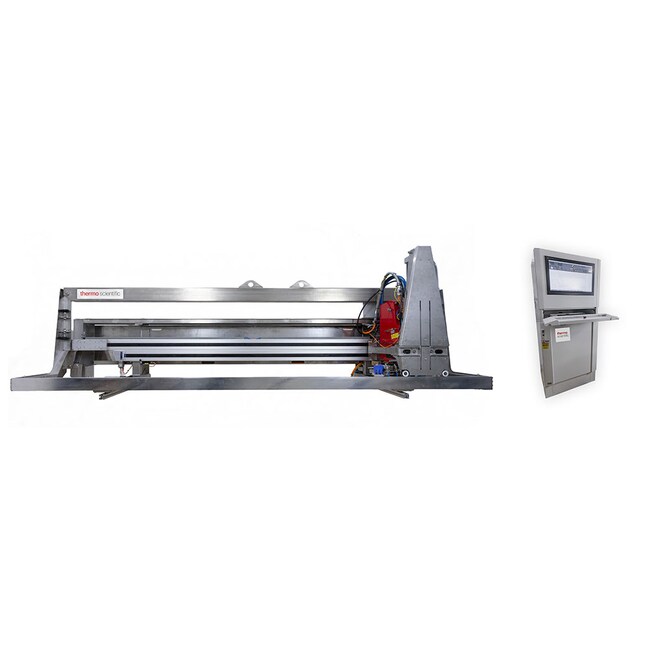

LInspector BAX-ray In-Line Dry Electrode Coating Measurement System

Thermo Scientific LInspector BAX-ray measurement system delivers precise, real-time measurement of dry electrode coatings in Li-ion battery production by using X-ray backscatter technology.

LInspector BAX-ray measurement system is engineered for high-speed, dual-side dry coating applications to help ensure precise control, early detection of defects, and uniformity across both sides of copper or aluminum substrates. The system has a compact sensor head and ultra-fast scan capability, making it ideal for modern roll-to-roll production environments.

Key Features:

• Innovative backscatter X-ray technology - measures coating weight on rollers (as a substrate) with unmatched precision and speed
• Pre-lamination measurement - enables early detection of coating inconsistencies before substrate contact
• Dual-side synchronization – allows simultaneous monitoring of top and bottom coatings for balanced deposition
• High-speed scanning - supports rapid production lines with minimal latency
• Compact, robust design - empowers continuous operation in demanding dry coating environments

Applications:

• Lithium-ion battery electrode manufacturing
• Solid-state battery manufacturing
• EV battery gigafactories
• R&D and pilot lines
• Binder-free electrode coatings

Benefits:

• Maximizes coating uniformity and performance
• Reduces material waste and rework
• Enhances process transparency and quality control
• Supports sustainability goals with solvent-free compatibility
