Thermo Scientific™

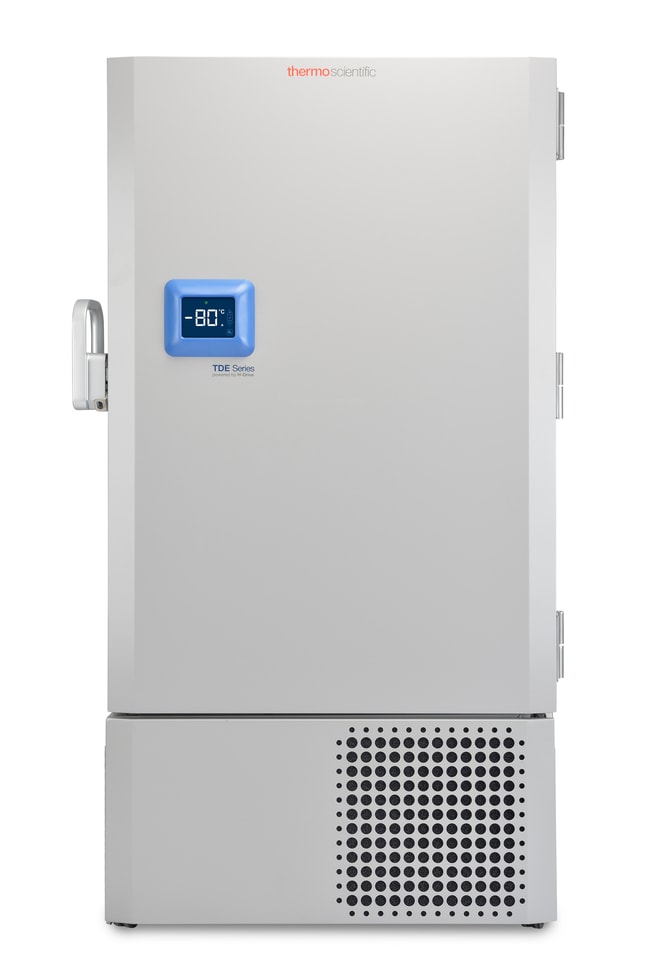

TDE Series Ultra-Low Temperature Freezer Package with Racks, Boxes, and LN2 Back-up System
TDE ultra-low temperature freezer package includes one ULT freezer, two shelves of sliding drawer racks and boxes, and a factory-installed LN2 back-up system
Have Questions?
Change view
| Catalog Number | Electrical Requirements | Dimensions (L x W x H) Exterior | Certifications/Compliance |
|---|---|---|---|
| TDE40086FARLN | 115 V 60 Hz | 38.5 x 28.3 x 78 in. | cULus |
| TDE40086LARLN | 115 V 60 Hz | 38.5 x 28.3 x 78 in. | cULus, FDA Class II |
| TDE40086FDRLN | 208 - 230 V 60 Hz | 38.5 x 28.3 x 78 in. | cULus |
| TDE40086LDRLN | 208 - 230 V 60 Hz | 38.5 x 28.3 x 78 in. | cULus, FDA Class II |
| TDE50086FARLN | 115 V 60 Hz | 38.5 x 34.0 x 78 in. | cULus |
| TDE50086LARLN | 115 V 60 Hz | 38.5 x 34.0 x 78 in. | cULus, FDA Class II |
| TDE50086FDRLN | 208 - 230 V 60 Hz | 38.5 x 34.0 x 78 in. | cULus |
| TDE50086LDRLN | 208 - 230 V 60 Hz | 38.5 x 34.0 x 78 in. | cULus, FDA Class II |
| TDE60086FARLN | 115 V 60 Hz | 38.5 x 39.6 x 78 in. | cULus |
| TDE60086LARLN | 115 V 60 Hz | 38.5 x 39.6 x 78 in. | cULus, FDA Class II |
| TDE60086FDRLN | 208 - 230 V 60 Hz | 38.5 x 39.6 x 78 in. | cULus |
| TDE60086LDRLN | 208 - 230 V 60 Hz | 38.5 x 39.6 x 78 in. | cULus, FDA Class II |
Catalog number TDE40086FARLN
Price (CNY)Request A Quote
-
Electrical Requirements:
115 V 60 Hz
Dimensions (L x W x H) Exterior:
38.5 x 28.3 x 78 in.
Certifications/Compliance:
cULus
Part of the Standard Performance (STP) family, Thermo Scientific™ TDE ultra-low temperature freezer packages include one ULT freezer, two shelves of sliding drawer racks and boxes, and a factory-installed LN2 back-up system.
Package includes:
- One Thermo Scientific TDE Ultra-Low temperature freezer
- 2 shelves of sliding drawer racks with 2-inch cryoboxes and 100-count cell dividers. (see product specifications for details)
- Factory-installed LN2 back-up system (LN2 tank not included)
Specifications
Dimensions (L x W x H) Exterior38.5 x 28.3 x 78 in.
Electrical Requirements115 V 60 Hz
HoldsBoxes (400)
Includes400 box capacity freezer, 8 sliding drawer racks, 200 2-inch boxes with 100-count cell dividers, and a factory installed LN2 backup system
InsulationWater-Blown Polyurethane Foam
InteriorStainless Steel
Rack Capacity8
TypeUltra-Low Freezer, Upright
Capacity (English)19.4 cu. ft.
Capacity (Metric)549 L
Certifications/CompliancecULus
CompressorH-drive
Door StyleOuter (1), Inner (4)
Monitoring OptionsAlarm, Recorder
No. of Doors5
Plug TypeNEMA 5-20
Shelves2
StyleUpright
Temperature Range-50°C to -86°C
Voltage115 V
Unit SizeEach
