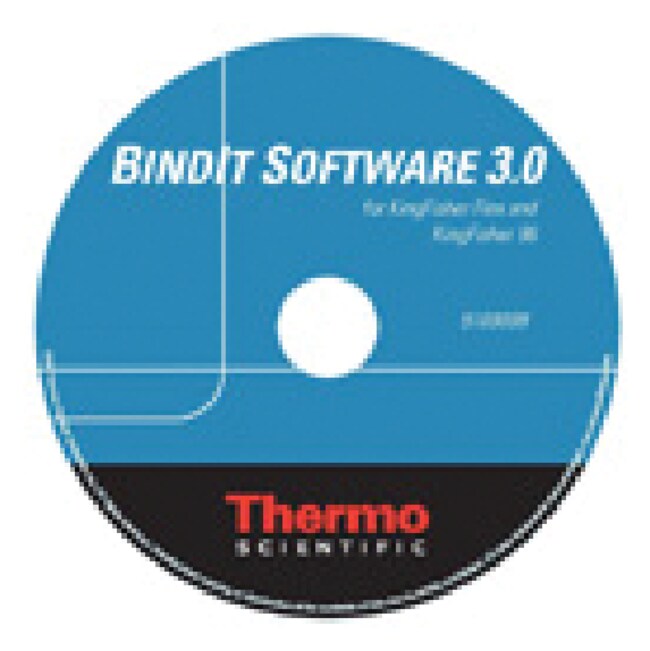

BindIt™ 软件，仅 CD
BindIt™ 软件，仅 CD
Thermo Scientific™

BindIt™ 软件，仅 CD

使用 Thermo Scientific™ BindIt™ 软件（一种用于创建和修改方案的通用工具）自动化实现定制应用。
Have Questions?
货号数量
5189009Each
货号 5189009
价格（CNY)
999,999,999.00
Each
添加至购物车
数量:
Each
价格（CNY)
999,999,999.00
Each
添加至购物车
使用 Thermo Scientific™ BindIt™ 软件创建和存储 KingFisher 净化系统方案。方案一经创建，可将其转移至 Thermo Scientific™ KingFisher™ 仪器的内存或直接从软件执行。所有方案步骤都有默认参数，这些参数可以根据实际应用的需求进行调整。
特点：
  • 使用的微孔板和试剂都能在微孔板布局中定义
  • 为了满足日益增长的 QC 需求，BindIt 软件能够为用户生成一个状态报告，包括运行日志、微孔板布局以及步骤参数
  • 使 KingFisher Flex 能够结合液体处理、自动化和微孔板储板仪器，提供全自动化的解决方案和较大化的通量

兼容：

KingFisher、KingFisher mL、KingFisher Flex、KingFisher Duo Prime

仅供研究使用。不可用于诊断程序。
规格
描述BindIt 软件
显示器XVGA 显示器，分辨率为 1024 x 768
适用于（设备）KingFisher、KingFisher mL、KingFisher Flex、KingFisher Duo Prime
包括仅 CD
存储1 GB RAM
操作系统Windows XP Professional（配备服务包 3）、Windows Vista（配备服务包 2）、Windows 7（配备服务包 1）和 Windows 8
端口备有一个串口或 USB 端口供选择
数量Each
Unit SizeEach

常见问题解答 (FAQ)

MagMAX Express-96仪器也可以使用BindIt软件吗？

是的，MagMAX Express-96仪器可以和装有最新版本BindIt软件v3.3.1.7的电脑相连。这种连接需要一个到USB转化器的串行端口。已有的.kf2 文件在BindIt软件内不能被编辑，但是可以将.kf2文件重写为.bdz文件从而可以被编辑。请参见应用注意（https://tools.thermofisher.com/content/sfs/brochures/KingFisher-BindIT-TechNote-5189009.pdf）了解更多细节。

BindIt软件和哪些版本的Microsoft Windows兼容？

BindIt软件和Windows XP (Professional with Service Pack 3)，Windows Vista (Service Pack 2), Windows 7 (Service Pack 1), 以及Windows 8兼容。

How do I use BindIt software 4.0 to load a script from my computer to the KingFisher Flex or KingFisher Duo/Duo Prime instrument?

Please follow these steps to load a script from your computer to the KingFisher Flex or KingFisher Duo/Duo Prime instrument:
1. Use the USB cable to connect the PC to the instrument.
2. Turn on the instrument.
3. Open the BindIt software and click the Connect button.
4. Select "Find New Instrument." BindIt will automatically connect to the instrument and the instrument screen will say "Computer Control".
5. Click the "Transfer" Button.
6. Click the "Upload" button.
7. Browse to find the file and double-click it.
8. In the new window that opens:
a. KingFisher Flex: you will be prompted to enter a new name – this is not necessary if the name only contains letters, digits, dash or underscore.
• If the name contains spaces, apostrophes or any other character, you should enter a new name containing only letters, digits, dash (-) or underscore (_).
• Click the "Category" pulldown to select the instrument folder you want to load the script to.
• Click OK.
b. KingFisher Duo/Duo Prime: The KingFisher Duo and Duo Prime instruments accept all characters in the filename.
• Click the "Category" pulldown to select the instrument folder you want to load the script to.
• Click OK.

Find additional tips, troubleshooting help, and resources within our Automated Nucleic Acid Purification Support Center.

Where can I find scripts for the MagMAX Express-96 instrument?

The MagMAX Express-96 protocol scripts can be found on the MagMAX Express protocol page (https://www.thermofisher.com/us/en/home/life-science/dna-rna-purification-analysis/rna-extraction/rna-types/total-rna-extraction/magmax-technology/magmax-particle-processors/magmax-instrument-protocols-scripts.html). If the specific script you are looking for is not located here or on the product page for the MagMAX kit, please contact Technical Support at techsupport@thermofisher.com.

Which software should I use for transferring scripts to my MagMAX Express-96 or KingFisher Flex instrument?

We recommend using the BindIt Software to transfer scripts to the MagMAX Express-96 and KingFisher Flex instruments. The BindIt Software should be used to transfer scripts for all of the Applied Biosystems MagMAX Express and Thermo Scientific KingFisher instruments.

View all BindIt™ 软件，仅 CD FAQs
