Thermo Scientific™

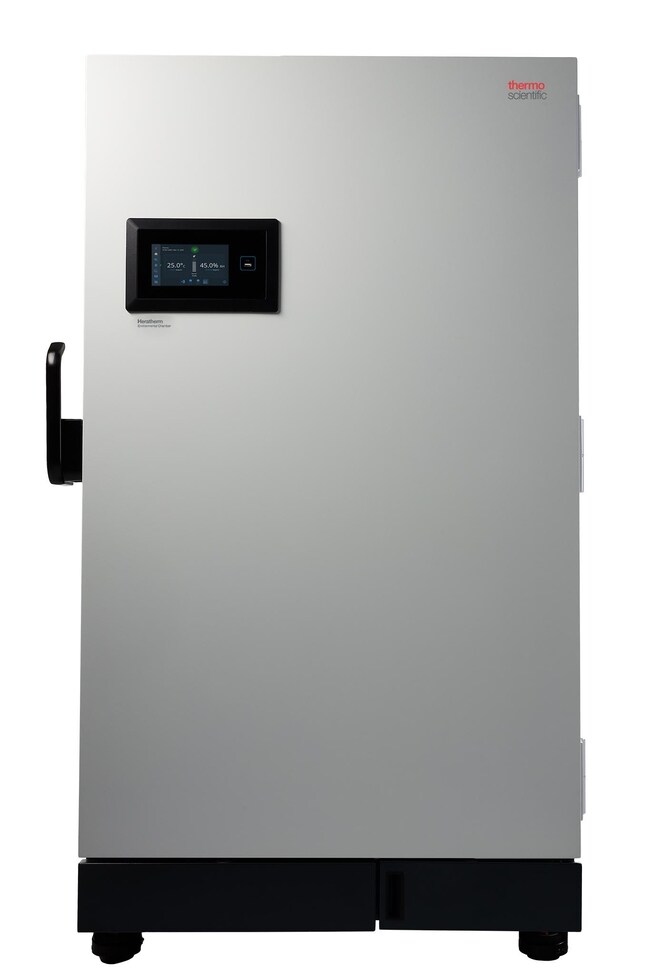

Heratherm Light Chambers 750 L

Accurate and even light distribution with Long-lasting LED lighting for (ICH) light testing, plant growth and animal hatching — relative humidity and temperature are controlled to meet specified environment.
Have Questions?
更改视图buttonViewtableView
货号门样式适用于（应用）包括
ELS750Solid outer door with inner glass doorICH light testing, plant growth, light testing, animal hatchingLight modules not included - ICH testing: 333979G01 / Standard: 333980G01
ELG750Glass doorPlant growth, light testing, animal hatchingLight modules not included - for plant growth/testing/animal hatching: 333980G01
货号 ELS750
价格（CNY)
-
申请报价
门样式:
Solid outer door with inner glass door
适用于（应用）:
ICH light testing, plant growth, light testing, animal hatching
包括:
Light modules not included - ICH testing: 333979G01 / Standard: 333980G01
Accurate control of three parameters - Temperature above and below ambient, relative humidity and light - provide great environment in testing applications and for biological research with plants and animals. Choice of ICH module provides capability for efficient ICH light testing in Pharma.
  • Uniform Temperature / relative humidity / light exposure for samples.
  • Energy-efficient Peltier technology supports temperature stability and uniformity with lower energy usage compared to traditional compressors and without hazardous refrigerant.
  • LED light system provides specified light exposure on 1, 2 or 3 shelves; programmable to adapt light quality / intensity and on/off timing - e.g. for day-night cycles. Choose from two light modules (ordered separately):
    • 1. ICH module, includes UV LED for ICH light testing;can only be used in ELS750 - model with solid outer door - for safety reasons
    • 2. Testing module for plant growth / daylight testing / animal hatching
  • Environmentally friendly water-efficient humidification system - with water tank or optional fix water connection for in-house purified water
  • Intuitive touchscreen interface with easy programmability of parameter cycles and process duration.
  • Two access ports for independent data capture, and internal documentation of set and actual parameter values, along with event log to meet 21 CFR Part 11 requirements for process documentation.
  • Data retrieval via USB stick, or Thermo Cloud via OPC-UA standard (with Connect Edge solution)
  • Sample and process protection: Assign personalized access with passcode; restrict access with standard key door lock or optional automated door lock; various alarm options to prevent operator of process issues.
  • Simplified setup with no technician required; install using standard power cord.
  • IQ/OQ qualifications and other services available; visit thermofisher.com/chamberservice.
  • Inner glass door keeps environment stable, even when opening outer door. Exterior glass door also available (not for ICH module use - for safety reasons).
  • Rounded corners and removable shelving offer easy cleaning to help prevent cross-contamination.
规格
警报类型Audible and Visible
容积（英制）26.5 cu.ft
托架容量（英制）66 lbs (stationary)
托架容量（公制）30 kg (stationary)
认证/合规UL, CE
数据输出USB, Thermo Cloud via OPC UA
尺寸（长 x 宽 x 高）895 x 1080 x 1835 mm / 35.24 x 42.52 x 72.24 in
内部尺寸（长x宽x高）630 x 840 x 1450 mm / 24.8 x 33.07 x 57.09 in
显示器7 in. Touchscreen user interface
门样式Solid outer door with inner glass door
电气要求100 - 240V, 50-60Hz, 1700W
适用于（应用）ICH light testing, plant growth, light testing, animal hatching
湿度范围10 - 80% RH with light; 10 -90% RH w/o light
湿度分辨率0.1% RH
湿度源Removable water tank
包括Light modules not included - ICH testing: 333979G01 / Standard: 333980G01
照明灯LED
插头类型Nema 5-20P
端口2 access ports
可编程Temperature, relative humidity, light intensity
托架面积（英制）4.9 ft2
托架面积（公制）0.46 m2
托架材料Stainless Steel (304/1.4301)
运输重量（英制）862 lbs
运输重量（公制）391 kg
温度分辨率0.1°C
温度稳定性≤±0.3°C @ 25°C to 40°C
温度均匀性≤±2.0°C @ 25°C to 40°C
类型Vertical Light Chamber
质保期24 months
水消耗量0.2 - 1.5 L per day; Value depends on settings, usage (e.g. number of door openings), and environmental conditions
水电阻率0.05 - 1 MΩ
瓦数1700 W
托架宽度（英制）31.3 in.
托架宽度（公制）795 mm
容量（公制）750 L
箱体材料Stainless Steel (304/1.4301)
材质Powder-coated Galvanized Steel
搁板数量3
相对湿度10 to 90%
温度范围（公制）15 to 45°C with light; 0 to 70°C w/o light
电压100/240 V
Unit SizeEach
