Thermo Scientific™

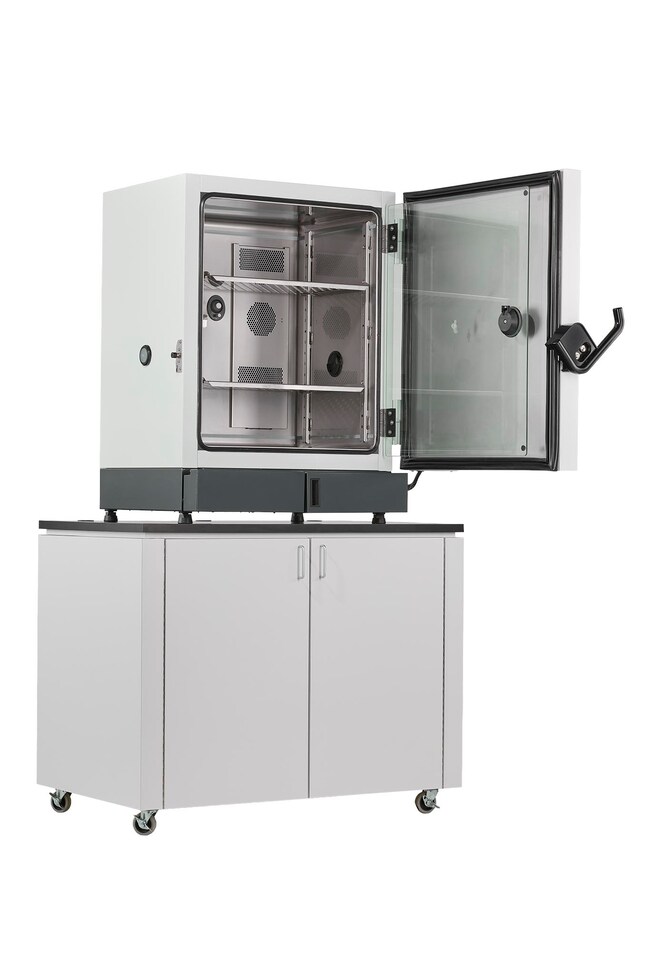

Heratherm Stability Chambers

Name: Heratherm Stability Chambers
SKU: ESS250

Gain confidence in your product when testing stability and shelf life with robust Heratherm Stability chambers designed to meet a variety of quality control demands.

更改视图

货号	门样式	容量（公制）
ESS250	Solid outer door with inner glass door	247 L
ESS750	Solid (outer), Glass (inner)	750 L
ESG750	Glass	750 L
ESG250	Glass door	247 L

4 选项

货号 ESS250

价格（CNY)

门样式:

Solid outer door with inner glass door

容量（公制）:

247 L

Temperature and humidity controls, well suited for stability testing, shelf life testing, and environmental testing.

Broad relative humidity range to cover many applications, including humidity levels below ambient.
Environmentally friendly water-efficient humidification system.
Minimal condensate in standard applications.
Integrated water tank; fixed water connection for in-house purified water option available.
Energy-efficient Peltier technology supports temperature stability and uniformity with lower energy usage compared to traditional compressors and without hazardous refrigerant.
Two access ports for independent data capture, and internal documentation of set and actual parameter values, along with event log to meet 21 CFR Part 11 requirements for process documentation.
Data retrieval via USB stick, Ethernet connection, or Thermo Cloud via OPC-UA standard.
Sample and process protection: Assign personalized access with user IDs; restrict access with standard door lock, or optional automated door lock; various alarm options to prevent operator of process issues.
Intuitive touchscreen interface with easy programmability of temperature cycles and process duration.
Simplified setup with no technician required; install using standard power cord.
IQ/OQ qualifications and other services available; visit thermofisher.com/chamberservice.
Inner glass door keeps environment stable, even when opening outer door. Glass door also available.
Rounded corners and removable shelving offer easy cleaning to help prevent cross-contamination.
Duplex interior electrical sockets for use of stirrers, shakers or other equipment inside the chamber are available as a factory-installed option. Choose from a variety of country-specific sockets. (Ordered with separate order code)

规格

警报类型Audible and Visible

容积（英制）8.8 cu.ft.

托架容量（英制）66.1 lb.

托架容量（公制）30 kg

认证/合规UL, CE

数据输出USB, Thermo Cloud via OPC UA

深度（英制）31.1 in.

内部深度（英制）20.4 in.

深度（公制）790 mm

内部深度（公制）519 mm

显示器7 in. Touchscreen user interface

门样式Solid outer door with inner glass door

电气要求100/240V, 50/60Hz

适用于（应用）Stability testing, environmental testing, storage

高度（英制）44.4 in.

内部高度（英制）31.5 in

高度（公制）1128 mm

内部高度（公制）800 mm

湿度范围10 to 90% RH

湿度源Removable water tank

照明灯No

脚轮数量None

插头类型Nema 5-20P

端口2 access ports

可编程Temperature and humidity ramping

托架面积（英制） 3.05 ft.²

托架面积（公制）0.28 m²

托架材料Stainless Steel (304/1.4301)

运输重量（英制）459 lb.

运输重量（公制）208 kg

温度控制Microprocessor - programmable

温度分辨率0.1°C

温度稳定性≤ ±0.1°C @ 20°C to 37°C

温度均匀性≤ ±0.5°C @ 20°C to 37°C

类型Stability Chamber

质保期24 months

水消耗量≤ 0.25 L per day - Value depends on settings, usage (e.g. number of door openings), and environmental conditions

水电阻率0.05 - 1 MΩ

瓦数900 W

宽度（英制）35.5 in.

内部宽度（英制）26 in.

托架宽度（英制）24.2 in.

宽度（公制）901 mm

内部宽度（公制）660 mm

托架宽度（公制）615 mm

容量（公制）247 L

箱体材料Powder-coated Cold Rolled Steel

材质Powder-coated Cold Rolled Steel

搁板数量2

相对湿度10 to 90%

温度范围（公制）0 to 70°C

电压100/115/220/230 V

Unit SizeEach
