Invitrogen

CD86 (B7-2) Monoclonal Antibody (IT2.2), Alexa Fluor™ 647, eBioscience™

CD86 (B7-2) Antibody in Flow Cytometry (Flow)

图: 1 / 16

CD86 (B7-2) Antibody (51-0869-42) in Flow

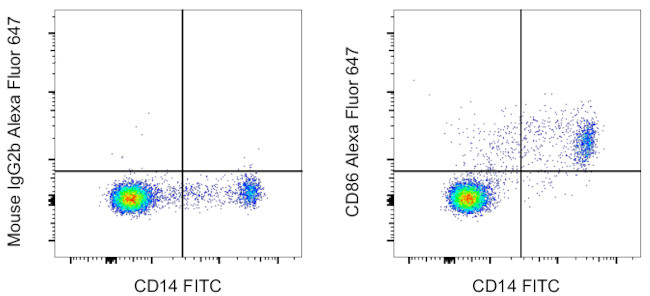

Normal human peripheral blood cells were stained with CD14 Monoclonal Antibody, FITC (Product # 11-0149-42) and Mouse IgG2b kappa Isotype Control, Alexa Fluor 647 (Product # 51-4732-81) (left), or CD86 (B7-2) Monoclonal Antibody, Alexa Fluor 647 (right). Cells in the monocyte gate were used for analysis.

CD86 (B7-2) Antibody in Neutralization (Neu)

Product Image Gallery

产品信息

51-0869-42

应用

建议稀释比

已发表文章

流式细胞分析 (Flow)

5 µL (0.25 µg)/test

查看10篇已发表文章 10篇已发表文章

中和实验 (Neu)

查看1篇已发表文章 1篇已发表文章

产品规格

种属反应

Human

已发表种属

Not Applicable

宿主/亚型

Mouse / IgG2b, kappa

分类

Monoclonal

类型

Antibody

克隆号

IT2.2

偶联物

Alexa Fluor™ 647 Alexa Fluor™ 647 Alexa Fluor™ 647

激发/发射光谱

650/671 nm 查看光谱

形式

Liquid

浓度

5 µL/Test

纯化类型

Affinity chromatography

保存液

PBS, pH 7.2, with 0.2% BSA

内含物

0.09% sodium azide

保存条件

4° C, store in dark, DO NOT FREEZE!

运输条件

Ambient (domestic); Wet ice (international)

RRID

AB_2811840

产品详细信息

Description: The IT2.2 monoclonal antibody reacts with human CD86, an ~80 kDa surface receptor also known as B7-2. CD86 and CD80 are members of the B7 family of costimulatory molecules. CD86 is expressed at low levels on B cells, macrophages, and dendritic cells and is upregulated on B cells through a variety of surface stimuli including the BCR complex, CD40 and some cytokine receptors. In addition to CD80 (B7-1), CD86 is a counter-receptor for the T cell surface molecules CD28 and CD152 (CTLA-4). The interaction of CD86 with its ligands plays a critical role in T-B crosstalk, T cell costimulation, autoantibody production and Th2-mediated Ig production. The kinetics of upregulation of CD86 upon stimulation supports its major contribution during the primary phase of an immune response.

Applications Reported: This IT2.2 antibody has been reported for use in flow cytometric analysis.

Applications Tested: This IT2.2 antibody has been pre-diluted and tested by flow cytometric analysis of normal human peripheral blood cells. This may be used at 5 µL (0.25 µg) per test. A test is defined as the amount (µg) of antibody that will stain a cell sample in a final volume of 100 µL. Cell number should be determined empirically but can range from 10^5 to 10^8 cells/test.

Excitation: 633-647 nm; Emission: 668 nm; Laser: Red Laser

靶标信息

CD86 is one of two ligands (the other CD80) for CTLA4 and CD28. CD86 acts as costimulatory molecule in eliciting T-cell help during antigen presentation. Antigen presentation in the absence of sufficient co-stimulation involving CD86/CD80 can induce tolerance. CD80 appears to play a role distinct from CD80 in T helper cell differentiation. CD86 is a type I membrane protein that is a member of the immunoglobulin superfamily. The CD86 protein is expressed by antigen-presenting cells, and it is the ligand for two proteins at the cell surface of T cells, CD28 antigen and cytotoxic T-lymphocyte-associated protein 4. Binding of CD86 with CD28 antigen is a costimulatory signal for activation of the T-cell. Binding of CD86 with cytotoxic T-lymphocyte-associated protein 4 negatively regulates T-cell activation and diminishes the immune response. Alternative splicing results in two transcript variants encoding different isoforms of CD86. Additional transcript variants have been described for CD86, but their full-length sequences have not been determined. Diseases associated with CD86 dysfunction include gallbladder squamous cell carcinoma and myocarditis.

仅用于科研。不用于诊断过程。未经明确授权不得转售。

How to use the Panel Builder

Watch the video to learn how to use the Invitrogen Flow Cytometry Panel Builder to build your next flow cytometry panel in 5 easy steps.

Product References

Germline Neurofibromin 1 mutation enhances the anti-tumour immune response and decreases juvenile myelomonocytic leukaemia tumourigenicity.

British journal of haematology

Wang W,Li X,Qin X,Miao Y,Zhang Y,Li S,Yao R,Yang Y,Yu L,Zhu H,Song L,Mao S,Wang X,Chen J,Feng H,Li Y

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Sat Jul 01 00:00:00 EDT 2023

Engineered Human Dendritic Cell Exosomes as Effective Delivery System for Immune Modulation.

International journal of molecular sciences

Elsayed R,Elashiry M,Tran C,Yang T,Carroll A,Liu Y,Hamrick M,Cutler CW

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Tue Jul 11 00:00:00 EDT 2023

SARS-CoV-2 Delta (B.1.617.2) variant replicates and induces syncytia formation in human induced pluripotent stem cell-derived macrophages.

PeerJ

Thaweerattanasinp T,Wanitchang A,Saenboonrueng J,Srisutthisamphan K,Wanasen N,Sungsuwan S,Jongkaewwattana A,Chailangkarn T

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Thu Mar 09 00:00:00 EST 2023

M1 macrophage-derived exosomes and their key molecule lncRNA HOTTIP suppress head and neck squamous cell carcinoma progression by upregulating the TLR5/NF-κB pathway.

Cell death & disease

Jiang H,Zhou L,Shen N,Ning X,Wu D,Jiang K,Huang X

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Thu Feb 24 00:00:00 EST 2022

TcpC Inhibits M1 but Promotes M2 Macrophage Polarization via Regulation of the MAPK/NF-κB and Akt/STAT6 Pathways in Urinary Tract Infection.

Cells

Fang J,Ou Q,Wu B,Li S,Wu M,Qiu J,Cen N,Hu K,Che Y,Ma Y,Pan J

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Sun Aug 28 00:00:00 EDT 2022

Glycerol monolaurate inhibition of human B cell activation.

Scientific reports

Fosdick MG,Loftus S,Phillips I,Zacharias ZR,Houtman JCD

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Fri Aug 05 00:00:00 EDT 2022

Longitudinal profiling of respiratory and systemic immune responses reveals myeloid cell-driven lung inflammation in severe COVID-19.

Immunity

Szabo PA,Dogra P,Gray JI,Wells SB,Connors TJ,Weisberg SP,Krupska I,Matsumoto R,Poon MML,Idzikowski E,Morris SE,Pasin C,Yates AJ,Ku A,Chait M,Davis-Porada J,Guo XV,Zhou J,Steinle M,Mackay S,Saqi A,Baldwin MR,Sims PA,Farber DL

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Tue Apr 13 00:00:00 EDT 2021

Small-molecule inhibitors targeting Polycomb repressive complex 1 RING domain.

Nature chemical biology

Shukla S,Ying W,Gray F,Yao Y,Simes ML,Zhao Q,Miao H,Cho HJ,González-Alonso P,Winkler A,Lund G,Purohit T,Kim E,Zhang X,Ray JM,He S,Nikolaidis C,Ndoj J,Wang J,Jaremko Ł,Jaremko M,Ryan RJH,Guzman ML,Grembecka J,Cierpicki T

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Thu Jul 01 00:00:00 EDT 2021

Pomalidomide restores immune recognition of primary effusion lymphoma through upregulation of ICAM-1 and B7-2.

PLoS pathogens

Shrestha P,Davis DA,Jaeger HK,Stream A,Aisabor AI,Yarchoan R

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Neutralization

Fri Jan 01 00:00:00 EST 2021

IL-10^-/- Enhances DCs Immunity Against Chlamydia psittaci Infection via OX40L/NLRP3 and IDO/Treg Pathways.

Frontiers in immunology

Li Q,Li X,Quan H,Wang Y,Qu G,Shen Z,He C

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Mon Sep 27 00:00:00 EDT 2021

Reshaping of the Dendritic Cell Chromatin Landscape and Interferon Pathways during HIV Infection.

Cell host & microbe

Johnson JS,Lucas SY,Amon LM,Skelton S,Nazitto R,Carbonetti S,Sather DN,Littman DR,Aderem A

Published figure using CD86 (B7-2) monoclonal antibody (Product # 51-0869-42) in Flow Cytometry

Wed Mar 14 00:00:00 EDT 2018

生物信息学

蛋白别名: Activation B7-2 antigen; B lymphocyte activation antigen B72; B-lymphocyte activation antigen B7-2; B70; BU63; CD28 antigen ligand 2; CD86; CD86 antigen (CD28 antigen ligand 2, B7-2 antigen); CTLA-4 counter-receptor B7.2; Early T-cell co-stimulatory molecule 1; FUN-1; MGC34413; T-lymphocyte activation antigen CD86

查看更多收起

基因别名: B7-2; B7.2; B70; CD28LG2; CD86; LAB72

查看更多收起

UniProt ID: (Human) P42081

查看更多收起

Entrez Gene ID: (Human) 942

查看更多收起

功能

virus receptor activity receptor activity receptor binding protein binding coreceptor activity phosphatidylinositol-4,5-bisphosphate 3-kinase activity immunoglobulin receptor superfamily

参与通路
