Invitrogen

TER-119 Monoclonal Antibody (TER-119), Super Bright™ 600, eBioscience™

TER-119 Antibody in Flow Cytometry (Flow)

FIGURE: 1 / 17

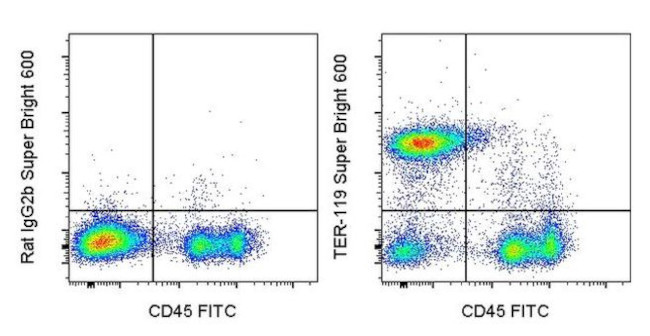

TER-119 Antibody (63-5921-82) in Flow

C57BL/6 mouse bone marrow cells were stained with CD45 Monoclonal Antibody, FITC (Product # 11-0451-82) and 0.25 µg of Rat IgG2b kappa Isotype Control, Super Bright 600 (Product # 63-4031-82) (left) or 0.25 µg of TER-119 Monoclonal Antibody, Super Bright 600 (right). Total viable cells were used for analysis.

Product Image Gallery

TER-119 Antibody in Western Blot (WB) — Figure 1. Baseline characterization of RBC-extracellular vesicles (EVs) in transgenic murine model. (A) Schematic representation of the experimental murine models. Erythroid lineage specific conditional Cre knock-in mice (EpoR-Cre mice, BALB/c background) were crossed with membrane-targeted Tomato/membrane-targeted GFP (mTmG Rosa26 mice, C57BL6/Sv129) to produce double transgenic (EpoR-Cre/mTmG) off-springs. Activated Cre mediates the removal of membrane-targeted tandem dimer Tomato (mT) sequence allowing the expression of membrane-targeted green fluorescent protein (mG) in RBCs. Arrows represent the direction of transcription. Triangles represent loxP sites for Cre-mediated recombination. pA stands for polyadenylation sequences. (B) High-magnification fluorescence images (63x) of fresh prepared peripheral blood smear and cell-free plasma smear from mTmG and EpoR-Cre/mTmG mice to characterize the mature circulating RBCs, and RBC-EVs (n = 4 in each group). Small bright GFP positive dots in the peripheral blood smear represent platelets. Scale bar: 10 mum. (C) Nanoflow cytometric characterization of cell-free plasma from mTmG mice and EpoR-Cre/mTmG mice, showing presence of mGFP + RBC-EVs in EpoR-Cre/mTmG mouse plasma. The auto fluorescence from the Suspension Buffer (Phosphate Buffer Saline) has been accounted for, as background. Shown are Td on the y-axis and GFP in the x-axis and divided in four quadrants (Q1 is mTd+ [red]; Q2 is mTd+/mGFP+ [double positive]; Q3 is mGFP+ [gr

Product Details

63-5921-82

Applications

Tested Dilution

Publications

免疫印迹 (WB)

查看1篇已发表文章 1篇已发表文章

流式细胞分析 (Flow)

0.5 µg/test

查看10篇已发表文章 10篇已发表文章

产品规格

Species Reactivity

Mouse

Published species

Not Applicable

Host/Isotype

Rat / IgG2b, kappa

Recommended Isotype Control

Rat IgG2b kappa Isotype Control (eB149/10H5), Super Bright™ 600, eBioscience™

分类

Monoclonal

类型

Antibody

克隆号

TER-119

Conjugate

Super Bright™ 600

Excitation/Emission Max

414/601 nm View spectra

形式

Liquid

浓度

0.2 mg/mL

纯化类型

Affinity chromatography

保存液

PBS, pH 7.2, with BSA

内含物

0.09% sodium azide

保存条件

4° C, store in dark, DO NOT FREEZE!

RRID

AB_2688117

Product Specific Information

Description: The TER-119 monoclonal antibody reacts with mouse erythroid cells from early proerythroblast to mature erythrocyte stages. The TER-119 antigen is present in yolk sac, fetal and newborn liver, but is not expressed by cells carrying BFU-E and CFU-E activities. Several erythroleukemia cell lines tested so far are negative for expression of TER-119 antigen even after dimethylsulfoxide stimulation. Biochemical and molecular analysis of the TER-119 antigen indicate that this molecule is associated with the surface glycophorin A, but is not a typical glycophorin.

Applications Reported: This TER-119 antibody has been reported for use in flow cytometric analysis.

Applications Tested: This TER-119 antibody has been tested by flow cytometric analysis of mouse bone marrow cells. This may be used at less than or equal to 0.25 µg per test. A test is defined as the amount (µg) of antibody that will stain a cell sample in a final volume of 100 µL. Cell number should be determined empirically but can range from 10^5 to 10^8 cells/test. It is recommended that the antibody be carefully titrated for optimal performance in the assay of interest.

Super Bright 600 is a tandem dye that can be excited with the violet laser line (405 nm) and emits at 600 nm. We recommend using a 610/20 bandpass filter. Please make sure that your instrument is capable of detecting this fluorochrome.

When using two or more Super Bright dye-conjugated antibodies in a staining panel, it is recommended to use Super Bright Complete Staining Buffer (Product # SB-4401) to minimize any non-specific polymer interactions. Please refer to the datasheet for Super Bright Staining Buffer for more information.

Light sensitivity: This tandem dye is sensitive to photo-induced oxidation. Please protect this vial and stained samples from light.

Fixation: Samples can be stored in IC Fixation Buffer (Product # 00-8222) (100 µL of cell sample + 100 µL of IC Fixation Buffer) or 1-step Fix/Lyse Solution (Product # 00-5333) for up to 3 days in the dark at 4°C with minimal impact on brightness and FRET efficiency/compensation. Some generalizations regarding fluorophore performance after fixation can be made, but clone specific performance should be determined empirically.

Excitation: 405 nm; Emission: 600 nm; Laser: Violet Laser

Super Bright Polymer Dyes are sold under license from Becton, Dickinson and Company.

Target Information

TER-119 is a lineage marker for erythroid cells from early proerythroblast to mature erythrocyte stages in adult blood, spleen, and bone marrow. It is also present in yolk sac, and fetal and newborn liver. The TER-119 antigen is not expressed by cells of earlier erythroid development at BFU-e (blast-forming unit erythroid) stage or CFU-e (colony-forming unit erythroid) stage.

仅用于科研。不用于诊断过程。未经明确授权不得转售。

Flow Cytometry

Panel Builder

How to use the Panel Builder

Watch the video to learn how to use the Invitrogen Flow Cytometry Panel Builder to build your next flow cytometry panel in 5 easy steps.

Product References

GRHL3 activates FSCN1 to relax cell-cell adhesions between migrating keratinocytes during wound reepithelialization.

JCI insight

Kashgari G,Venkatesh S,Refuerzo S,Pham B,Bayat A,Klein RH,Ramos R,Ta AP,Plikus MV,Wang PH,Andersen B

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Wed Sep 08 00:00:00 EDT 2021

Hypoxia-sensing CAR T cells provide safety and efficacy in treating solid tumors.

Cell reports. Medicine

Kosti P,Opzoomer JW,Larios-Martinez KI,Henley-Smith R,Scudamore CL,Okesola M,Taher MYM,Davies DM,Muliaditan T,Larcombe-Young D,Woodman N,Gillett CE,Thavaraj S,Maher J,Arnold JN

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Tue Apr 20 00:00:00 EDT 2021

Engineered red blood cells carrying PCSK9 inhibitors persistently lower LDL and prevent obesity.

PloS one

Deshycka R,Sudaryo V,Huang NJ,Xie Y,Smeding LY,Choi MK,Ploegh HL,Lodish HF,Pishesha N

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Fri Dec 24 00:00:00 EST 2021

The IRE1/XBP1 signaling axis promotes skeletal muscle regeneration through a cell non-autonomous mechanism.

eLife

Roy A,Tomaz da Silva M,Bhat R,Bohnert KR,Iwawaki T,Kumar A

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Tue Nov 23 00:00:00 EST 2021

SnRNA sequencing defines signaling by RBC-derived extracellular vesicles in the murine heart.

Life science alliance

Valkov N,Das A,Tucker NR,Li G,Salvador AM,Chaffin MD,Pereira De Oliveira Junior G,Kur I,Gokulnath P,Ziegler O,Yeri A,Lu S,Khamesra A,Xiao C,Rodosthenous R,Srinivasan S,Toxavidis V,Tigges J,Laurent LC,Momma S,Kitchen R,Ellinor P,Ghiran I,Das S

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Western Blot

Wed Dec 01 00:00:00 EST 2021

SnRNA sequencing defines signaling by RBC-derived extracellular vesicles in the murine heart.

Life science alliance

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Western Blot

Wed Dec 01 00:00:00 EST 2021

The lysophospholipase D enzyme Gdpd3 is required to maintain chronic myelogenous leukaemia stem cells.

Nature communications

Naka K,Ochiai R,Matsubara E,Kondo C,Yang KM,Hoshii T,Araki M,Araki K,Sotomaru Y,Sasaki K,Mitani K,Kim DW,Ooshima A,Kim SJ

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Thu Sep 17 00:00:00 EDT 2020

Methylation of a CGATA element inhibits binding and regulation by GATA-1.

Nature communications

Yang L,Chen Z,Stout ES,Delerue F,Ittner LM,Wilkins MR,Quinlan KGR,Crossley M

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Fri May 22 00:00:00 EDT 2020

A RUNX2 stabilization pathway mediates physiologic and pathologic bone formation.

Nature communications

Kim JM,Yang YS,Park KH,Ge X,Xu R,Li N,Song M,Chun H,Bok S,Charles JF,Filhol-Cochet O,Boldyreff B,Dinter T,Yu PB,Kon N,Gu W,Takarada T,Greenblatt MB,Shim JH

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Fri May 08 00:00:00 EDT 2020

Age-dependent modulation of vascular niches for haematopoietic stem cells.

Nature

Kusumbe AP,Ramasamy SK,Itkin T,Mäe MA,Langen UH,Betsholtz C,Lapidot T,Adams RH

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Thu Apr 21 00:00:00 EDT 2016

Heme-mediated SPI-C induction promotes monocyte differentiation into iron-recycling macrophages.

Cell

Haldar M,Kohyama M,So AY,Kc W,Wu X,Briseño CG,Satpathy AT,Kretzer NM,Arase H,Rajasekaran NS,Wang L,Egawa T,Igarashi K,Baltimore D,Murphy TL,Murphy KM

Published figure using TER-119 monoclonal antibody (Product # 63-5921-82) in Flow Cytometry

Thu Mar 13 00:00:00 EDT 2014

Bioinformatics

Protein Aliases: Ly-76; Ly76; TER119
