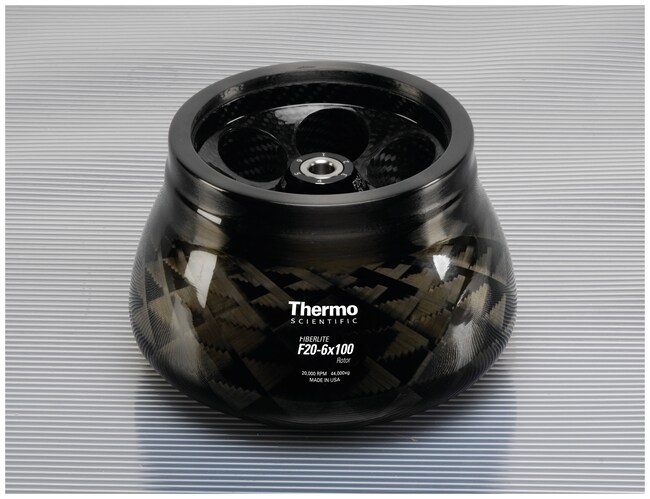

Fiberlite™ F20-6 x 100 Fixed-Angle Rotor
Thermo Scientific™

Fiberlite™ F20-6 x 100 Fixed-Angle Rotor

Green features
Process samples up to 100mL with the Thermo Scientific™ Fiberlite™ F20-6 x 100mL Fixed-Angle Rotor.
Have Questions?
Catalog NumberCapacityMax. SpeedMax. RCF
096-0640256 x 100 mL20,000 rpm43,904 x g
Catalog number 096-064025
Price (CNY)
-
Capacity:
6 x 100 mL
Max. Speed:
20,000 rpm
Max. RCF:
43,904 x g
Process samples up to 100mL with the Thermo Scientific™ Fiberlite™ F20-6 x 100mL Fixed-Angle Rotor.

Fiberlite Rotor:

  • Reduces run-times with higher G-forces achieved with lightweight carbon fiber rotors
  • Ensures structural integrity with corrosion- and fatigue-resistant design
  • Backed by a 15-year warranty

Ordering Information:

Tube adapers are sold separately; order rotor body (096062025). For O-ring refresher kit order 021-069031. Contact your sales representative for information.

Compatible with:

For Thermo Scientific Sorvall™ RC-6 Plus Series, Jouan KR22i Centrifuges, Thermo Scientific Nalgene™ bottles and tubes

Recommended for:

Pelleting of organelles, density gradients and various protocols requiring angle centrifugation of disposable conical tubes

Note:

†Performance may vary by centrifuge model

Specifications
Angle25°
DescriptionFiberlite F20-6 x 100 Fixed-Angle Rotor
K Factor864
Max. Tube Diameter38 mm
Max. Tube Length106 mm
Min. RCF11,200 x g
Net Weight10.2 lb. (4.63 kg)
Radius (Metric)98 mm
Radius (Metric) Min.25 mm
Capacity6 x 100 mL
MaterialCarbon Fiber Composite
Max. RCF43,904 x g
Max. Speed20,000 rpm
TypeFixed Angle Rotor
Unit SizeEach
