Thermo Scientific™
Thermal Mixers and Blocks
Get flexibility with this vertical mixer with variable speed and temperature control for a variety of applications.
Have Questions?
Change view
| Catalog Number | Product Type | Holds |
|---|---|---|
| 13687711 | Thermal Mixer | N/A |
| 13687720 | Mixer with Block | 20 x 0.5mL, 12 x 1.5mL Microtubes |
| 13687717 | Mixer with Block | 24 x 1.5mL Microtubes |
| 13687718 | Mixer with Block | 24 x 2.0mL Microtubes |
| 13687719 | Mixer with Block | 20 x 0.2mL, 12 x 1.5mL Microtubes |
| 13687721 | Mixer with Block | 96-well Microplates, 0.2mL Tube Strips |
| 13687712 | Block | 24 x 1.5mL Microtubes |
| 13687713 | Block | 24 x 2.0mL Microtubes |
| 13687714 | Block | 20 x 2mL, 12 x 1.5mL Microtubes |
| 13687715 | Block | 20 x 5mL, 12 x 1.5mL Microtubes |
| 13687716 | Block | 96-well Microplates, 0.2mL Tube Strips |
Catalog number 13687711
Price (CNY)
-
Product Type:
Thermal Mixer
Holds:
N/A

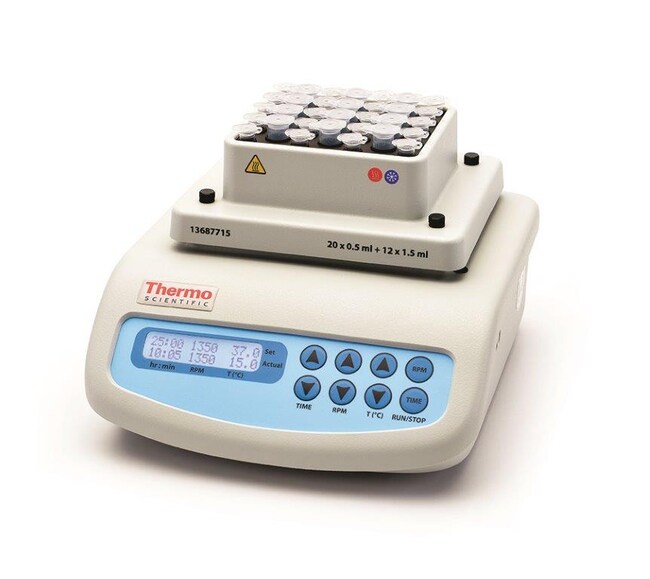

Gain variable speed and temperature control with the Thermo Scientific™ Thermal Mixer, which comes with a choice of blocks for microtubes and microplates.
- Heating and cooling capability to cover a wide range of applications
- Compact size with quiet operation
- Convenient packages that include a Thermal Mixer with a Block
Mixer Features
- Fast heat-up and cooling times and quick to reach specified mixing speed
- Temperature control range : 15°C below ambient to 100°C
- Temperature setting range : +4°C to 100°C
- Shaking speed : 250 to 1400 rpm
- Temperature stability : ±0.1°C
- Even mixing across the thermoshaker block
- Excellent uniformity across the block
- Digital timer with sound alarm : 1 min to 96 hours
- Temperature calibration function – compensate for differences in the thermal behavior of different tubes and samples
- Choice of 5 interchangeable blocks
- LCD Display indicates the set and actual time of operation, mixing speed, and temperature
- Heating/Cooling and mixing functions can be run independently of each other
Specifications
Amperage4.16 A
Dimensions (L x W x H)130 x 230 x 205 mm
DisplayLCD
For Use With (Equipment)Thermal Mixer Blocks 13687712, 13687713, 13687714, 13687715, 13687716
Height (English)8.07 in.
Height (Metric)205 mm
HoldsN/A
Length (English)5.11 in.
Length (Metric)130 mm
Plug TypeUS, EU, UK Plug
Product TypeThermal Mixer
Shipping Weight (Metric)4 kg
Temperature Control15°C below ambient to +100°C
Temperature Setting4°C to 100°C
Temperature Uniformity±0.6°C at 4°C, ±0.1°C at 37°C, ±0.3°C at 100°C
Timer Range1 min to 96 hours (1 min increment)
Wattage60 W
Width (English)9.05 in.
Width (Metric)230 mm
Certifications/ComplianceCertificate of Analysis (COA)
Orbit2 mm
Speed Range250 to 1400 rpm
Voltage120/240 VAC, 12 VDC
Unit SizeEach
