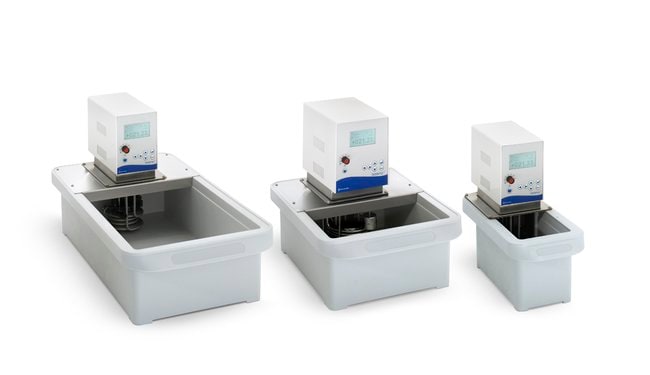

Isotemp™ 4100 H5P Open Heated PPO Bath Circulators

Open heated baths are made from very rigid polyphenyleneoxide (PPO) and are thermally resistant up to +100°C, making them an excellent alternative to stainless steel.

货号	电气要求	型号	容量（公制）
211114100	230 V 60 Hz	4100 H5P	4.5 to 5.3 L

货号 211114100

价格（CNY)

电气要求:

230 V 60 Hz

4100 H5P

容量（公制）:

4.5 to 5.3 L

Open heated baths are made from very rigid polyphenyleneoxide (PPO) and are thermally resistant up to +100°C, making them an excellent alternative to stainless steel.

These economical open-bath circulators use water as the heat transfer liquid. Baths have integrated grips and supports and are fitted with bridge plates for placement of the control head.

Heating capacity up to 1000 watts
With 5-liter bath
The most economical choice for a heating bath

Temperature range: Ambient to +100°C

容积（英制）1.19 to 1.4 gal.

尺寸（长 x 宽 x 高）15.3 x 7.5 x 13.7 in. (38.8 x 19 x 34.7 cm)

频率50 Hz

发热容量1.2 kW

高度（英制）13.7 in.

高度（公制）34.7 cm

长度（英制）15.3 in.

长度（公制）38.8 cm

材料Polyphenyleneoxide

型号4100 H5P

泵类型Force

温度稳定性±0.5°C

电压230 V

重量（英制）11.9 lb.

重量（公制）5.4 kg

宽度（英制）7.5 in.

宽度（公制）19 cm

容量（公制）4.5 to 5.3 L

电气要求230 V 60 Hz

流速17 L/min.

温度范围Ambient +10° to 100°C

类型Isotemp™ Open Heated Bath Circulator

Unit SizeEach
