Thermo Scientific™

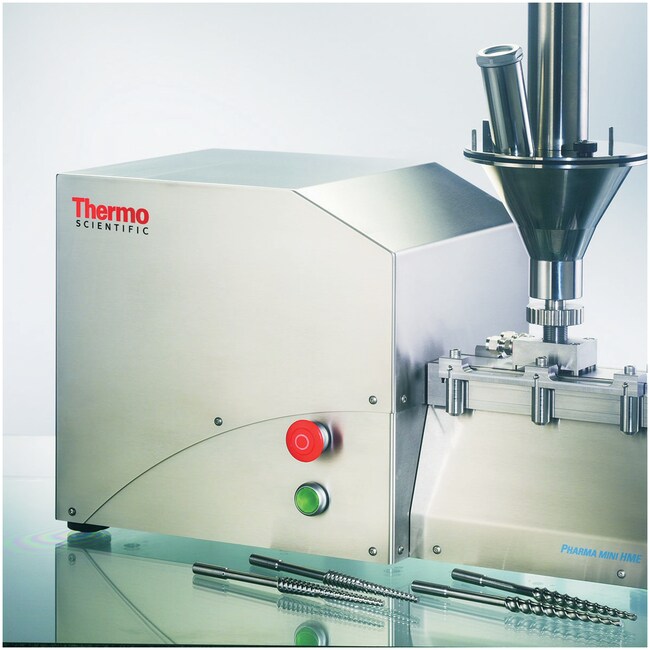

Pharma mini HME Micro Compounder Accessories
Accessories for the Pharma miniHME Micro Compounder used for Hot Melt Extrusion in research and development in the pharmaceutical industry
Have Questions?
Change view
| Catalog Number | Description |
|---|---|
| 553-0620 | CaliCut Post-extrusion System |
| 553-6100 | Set of Co-rotating Screws |
| 553-6105 | Set of Counter-rotating Screws |
| 553-6120 | Batch Kit |
| 553-6400 | Manual Feeder |
| 553-6410 | Mini Force Feeder |
| 553-8001 | Documentation Package |
Catalog number 553-0620
Price (CNY)Request A Quote
-
Description:
CaliCut Post-extrusion System
Accessories for the Pharma miniHME Micro Compounder used for Hot Melt Extrusion in research and development in the pharmaceutical industry.
Thermo Scientific™ CaliCut™ Post-extrusion System highlights:
- Control precision: a 1D laser diameter gauge adjusts and pulls the strand enabling the diameter to be adjusted within set tolerances. A nominal strand diameter of 0.2 mm – 6 mm can be produced in conjunction with a nominal length of 1 mm – 200 mm.
- Maximize flexibility: available with 350 mm, 700 mm or even 1200 mm belt lengths for cooling to meet a broad range of polymer formulation and throughput needs. Two different cutting mechanisms, a rotary and a linear cutting blade, optimize final implant sizing for a wide variety of implant materials. Make up to 600 cuts/minute.
- Be 21 CFR part 11 compliant: stainless steel housing conforms to GMP guidelines while the software is used to control user access levels secures data export, and provide audit support. Documentation for IQ/OQ is provided.
Specifications
DescriptionCaliCut Post-extrusion System
Height (Metric)430 mm
Length (Metric)530 mm
Weight (Metric)50 kg
Width (Metric)400 mm depth
Speed Range10 to 360 rpm
Unit SizeEach
