安培数 | 25 A |
速度范围 | 10 to 1000 rpm |
电压 | 3 x 400 V |
典型输出 | 0.4 to 20 kg/hr. (material dependent) |
机筒孔径 | 16 mm |
机筒区 | 8 zones. 7 x 5 L/D electrical heated (optional water cooled) |
高度(公制) | 1120 mm |
Barrel Length L/D | 40 L/D |
长度(公制) | 1230 mm |
宽度(公制) | 690 mm |
最高温度 | 350°C (450°C as option) |
描述 | Process 16 Parallel Twin-Screw Extruder |
螺杆类型 | Fully segmented, co-rotating |
Unit Size | Each |
安培数 | 25 A |
速度范围 | 10 to 1000 rpm |
电压 | 3 x 400 V |
典型输出 | 0.4 to 20 kg/hr. (material dependent) |
机筒孔径 | 16 mm |
机筒区 | 8 zones. 7 x 5 L/D electrical heated and water cooled |
高度(公制) | 1120 mm |
Barrel Length L/D | 40 L/D |
长度(公制) | 1230 mm |
宽度(公制) | 690 mm |
最高温度 | 350°C |
描述 | Process 16 Hygienic Parallel Twin-Screw Extruder |
螺杆类型 | Fully segmented, co-rotating |
Unit Size | Each |
货号 | 规格 | 单位规格 | 描述 | 价格(CNY) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
567-7700 | Each | Process 16 Parallel Twin-Screw Extruder | 申请报价 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
567-7710 | Each | Process 16 Hygienic Parallel Twin-Screw Extruder | 申请报价 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

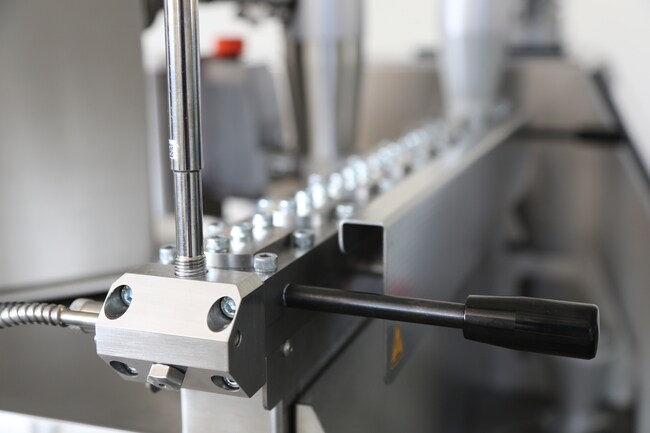

Process 16 平行双螺杆挤出机采用用户友好型触摸屏操作设计,配备有集成式给料机控制和易于拆除的产品接触部件。设计紧凑,尽可能减少实验室空间占用,便于清洁。
Process 16 平行双螺杆挤出机的特点包括:
建议用于以下材料:
应用范围:
