Thermo Scientific™

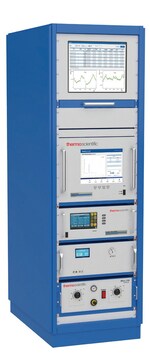

Model 5900-A Ambient NMHC Continuous Monitoring System

Thermo Scientific Model 5900-A ambient NMHC continuous monitoring system uses GC-FID and on-line VOCs preconcentration system to directly monitor ambient NMHC concentration in 7d/24h.
Have Questions?
Catalog number 5900-A
Price (CNY)
-
Request A Quote
Thermo Scientific Model 5900-A ambient NMHC continuous monitoring system uses GC-FID and on-line VOCs preconcentration system to directly monitor ambient NMHC concentration in 7d/24h. Air sample passes through PM filter and pretreatment system, and then enter the analyzer. The air sample enter the sample loop and preconcentration system, and then GC column by valve switch. The VOCs are separated in column and then detected in FID. Internal software completes the data collection, analysis, processing, storage, and transmission.
  • 19 in. rack mount system
  • Preconcentration plus GC-FID
  • EPC for all flow
  • Multi calibration ways
  • Real-time and historical chromatogram
  • Double ignition cores
Specifications
Accuracy≤±10%
AlarmsSelf-diagnostic alarm
CalibrationNMHC correlation coefficient R2≥0.999
Depth (Metric)667 mm
Electrical Requirements220VAC±10%，50-60Hz，max 500W
Height (Metric)355 mm
Measurement RangeNMHC 0-5000ppbC
Mounting Options19 in. rack mount
Repeatability≤5%
Weight (Metric)∼32 kg
Width (Metric)482.5 mm
Detection LimitsNMHC≤10ppbC
Unit SizeEach
