Sorvall ST1 and ST1R Centrifuge Series

Compact and ergonomic centrifuge designed to provide maximum capacity, versatility and flexibility across all applications and protocols
Have Questions?
更改视图buttonViewtableView
货号最大 RCF制冷型
75009880-C25,830 x g Fixed Angle with Microliter 30x2 rotor, 5,580 x g with TX-200 rotor是
75009740-C25,830 x g Fixed Angle with Microliter 30x2 rotor, 5,580 x g with TX-200 rotorNo
75016030-C4,696 x gNo
75016029-C4,696 x g是
货号 75009880-C
价格（CNY)
-
最大 RCF:
25,830 x g Fixed Angle with Microliter 30x2 rotor, 5,580 x g with TX-200 rotor
制冷型:
是

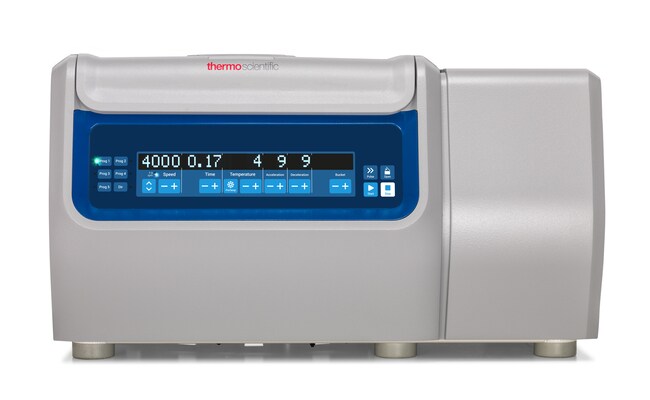

The Thermo Scientific™ Sorvall™ ST1 and ST1R General Purpose Plus Centrifuges provides quality and versatility with an easy-to-use, keypad and high contrast LCD display. With up to a 1.6 L capacity, they allow spinning 84 blood tubes, 16 x 50 mL conical tubes, 36 x 15 mL conical tubes and 10x standard microplates with biocontainment. Maximum versatility is achieved with 15 available rotors to choose from and Thermo Scientific™ Auto-Lock™ Rotor Exchange to quickly change between applications. These models are manufactured in China, exclusively for customers in China and are available for purchase individually or in convenient application-based packages.

Thermo Scientific™ ClickSeal™ Biocontainment Lids:

  • Biocontainment sealing options for glove-friendly, one-handed open/close capability are ergonomically designed for both right and left-handed operations
  • Audible and visual closure cues enhance safety and security
  • Biocontainment certification by National Institute for Health Protection, Porton Down, UK or TÜV NORD CERT GmbH, Germany

Rotor versatility and Thermo Scientific™ Fiberlite™ Carbon Fiber Rotors:

  • Up to 15 unique rotor options, including Fiberlite Carbon Fiber Rotor options, to help maximize performance and flexibility
  • Fiberlite carbon fiber rotors are supported by a 15-year warranty and no limitation in cycles of use
  • Carbon fiber offers a unique ability to mold each cavity to perfectly fit disposable conical tubes, bottles, and other consumables

Safety and ergonomic features:

  • Space saving design with compact dimensions to optimize work area at an ergonomic height
  • Lid safety features promote ergonomic sample loading and unloading and enable easy cleaning

Energy efficiency:

  • System offers up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tube processing
  • Fiberlite rotors weigh up to 60% less than metal equivalent rotors and therefore accelerate/decelerate faster translating into reduced energy consumption per run*

Previous models:
Sorvall ST16, Sorvall ST16R

规格
认证/合规EN/UL/IEC 61010-1、EN/UL/IEC 61010-2-020 和 61010-2-101、EN/UL/IEC 61326-1、EN/UL/IEC 61326-2-6、FCC 第 15 部分
控制器类型微处理器
描述Sorvall ST1R Plus 220-230V 50/60Hz
尺寸（高宽深）14.2 x 24.6 x 26 in. (36.1 x 62.5 x 66 cm)
显示器Push button and high contrast LCD interface
驱动系统Direct, brushless induction low profile motor
包括Printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord, declaration of conformity
材料Front, top, sides: PC-ABS plastic painted with 2K PUR-based lacquer; metal housing: cold rolled steel with powder paint; centrifuge bowl: stainless steel; centrifuge feet: rubber
型号仅限一般用途
净重94 kg
噪声级< 68 dB (A) Rotor F15-8x50c; 14500 RPM
配置文件（加速/制动）9个加速档/10个减速档可供选择
程序存储Up to 6 run programs
转头15 Rotor Options Available, rotor sold separately
包括转子否
运行时间Max 9h, 59min; also with continuous and pulse modes
安全特性SMARTSpin 不平衡检测、防止手指夹伤、防撞结构
标准品ISO 14971、ISO 13485、ISO 9001
温度范围-10°C 至 +40°C，±2°C
计时器Count down only in increments of 1 second (from 9 min 59 seconds) and in increments of 1 minute (>10 min)
类型台式离心机
通风型否
电压220/230 V
质保期5 年有限保修
瓦数1350 W
容量Up to 4 x 400 mL Bio-Bottles, 84 x 5/7 mL Blood Tubes, 66 x 9/10 mL Blood Tubes, 36 x 15 mL Conical Tues, 16 x 50 mL Conical Tubes, 10 Microplates in TX-400 or H-Flex 1 Rotor
最大 RCF25,830 x g Fixed Angle with Microliter 30x2 rotor, 5,580 x g with TX-200 rotor
最大速度15,200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
制冷型是
Unit SizeEach
