TVA1000B 有毒气体分析仪
TVA1000B 有毒气体分析仪

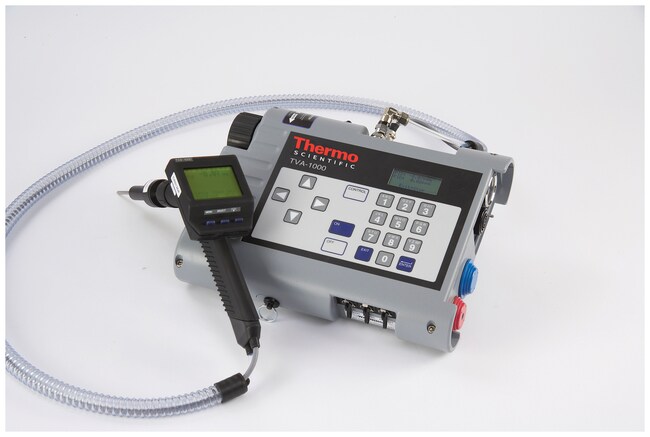

Actual product may vary
TVA1000B 有毒气体分析仪
TVA1000B 有毒气体分析仪
Thermo Scientific™

TVA1000B 有毒气体分析仪

本产品已停产，但我们将继续为其提供服务和支持。
Have Questions?
更改视图buttonViewtableView
货号描述
81030FID/PID Monitor; Without probe or case
81020FID Monitor; With probe and case
货号 81030
价格（CNY)
-
描述:
FID/PID Monitor; Without probe or case

本产品已停产，但我们将继续为其提供服务和支持。

Features:

  • Provides fast, accurate readings of organic and inorganic vapors in accordance with EPA Method 21 specifications for monitoring fugitive emissions
  • Portable and lightweight
  • Multiple response factors and curves
  • Multi-point calibration
  • On-board datalogging activated by a thumb-switch on handheld probe
  • Bright and easy-to-read displays with large keypad for simple operation with or without gloves
  • Menu-driven operations; datalogging activated by a thumb-switch on handheld probe
  • Standard probe shows measurement values with units displayed on %, ppm, or ppb and bar with concentration level
  • Data can be downloaded to Windows™-based programs using supplied software
  • Minimum Detectable Limit: 100ppb benzene (PID); 300ppb hexane (FID) (laboratory conditions)
  • Fuel: None required (PID); 99.995% hydrogen (FID)
  • Portable Operation Time: eight hours (with reference operating conditions)

    • Ordering Information:

    Standard accessories include battery pack and charger; shoulder strap; audible alarms; PC interface cable; Thermo Scientific™ ThermoConnect™ software; water trap probe and filter; hydrogen cylinder and refill adapter; instructions and response book. Enhanced probe with larger display and menu-driven access to analyzer functions is available separately through your customer service representative. Calibration kits are sold separately.

    Recommended for:

  • Fugitive emissions monitoring
  • Emergency response
  • Hazardous waste site evaluation
  • Industrial hygiene
  • Underground storage tank investigations
  • Natural gas leak detection

    • Note:

    Probe is required to operate analyzer or optional Bluetooth™ connectivity device.

    规格
    准确度FID=±25% of reading or ±2.5ppm, whichever is greater from 1.0 to 10000ppm; PID=±25% of reading or ±2.5ppm, whichever is greater from 0.5 to 500ppm
    警报类型High, Low, and STEL (short term exposure limit)
    电池寿命8 hr.
    认证/合规FM (Class 1, Div. 1, Groups A, B, C and D Hazardous Location, Temp. Class T4). CE
    数据点900 to 18000
    深度（英制）13.5 in.
    深度（公制）343 mm
    描述FID/PID Monitor; Without probe or case
    检测下限100ppb benzene (PID); 300ppb hexane (FID) (laboratory conditions)
    显示类型Bar Graph and 4-digit LCD
    流速1000cc
    燃料None required (PID); 99.995% hydrogen (FID)
    高度（英制）3.2 in.
    高度（公制）81 mm
    测量范围Dynamic Range (PID): 0 to 2000ppm; Dynamic Range (FID): 0 to 50000ppm
    输出0 to 2VDC
    便携操作时间8 hr.
    重复性±1%
    响应时间<3.5 seconds for 90% of final value, using 100ppm of isobutylene; <3.5 seconds for 90% of final value, using 10000ppm of methane
    温度范围（英制）32°F to 122°F
    温度范围（公制）0°C to 50°C
    重量（英制）12 lb.
    重量（公制）5.4kg
    宽度（英制）10.3 in.
    宽度（公制）262 mm
    Unit SizeEach
