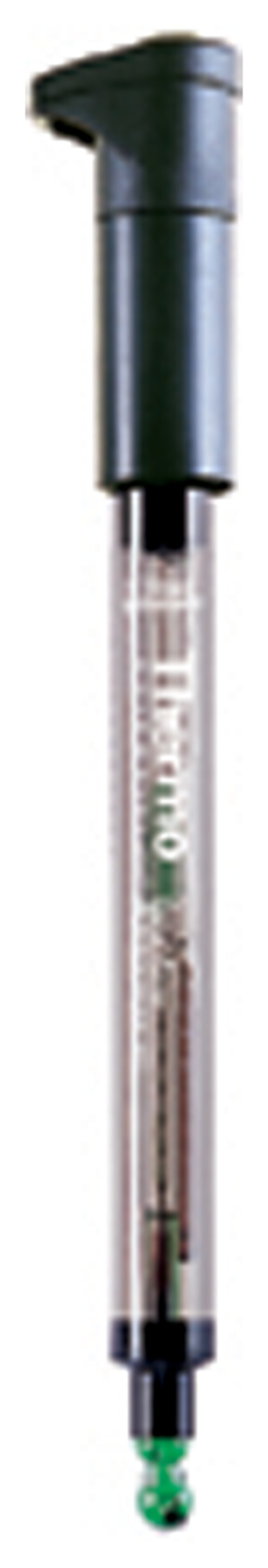

Orion™ Single Junction Sure-Flow™ Epoxy Bodied Combination pH Electrode
Orion™ Single Junction Sure-Flow™ Epoxy Bodied Combination pH Electrode
Thermo Scientific™

Orion™ Single Junction Sure-Flow™ Epoxy Bodied Combination pH Electrode

Attain stable, drift-free measurements of challenging samples using a sure-flow electrode with its unique free-flowing liquid-to-liquid junction.
Have Questions?
Catalog number 9165BNWP
Price (CNY)
-
Thermo Scientific™ Orion™ Sure-Flow electrodes are built with a unique free-flowing liquid-to-liquid junction that simplifies measurements of dirty or viscous samples by helping to prevent clogging, making them easy to clean. They are available in chemically resistant glass bodies and best suited for use in strong acids/bases, pH > 12 or pH < 2, food & cosmetic emulsions, pure water and slurries.

Orion™ Single Junction Electrodes provide a reliable option for routine pH measurement. These silver chloride electrodes are available in a variety of styles and provide accurate measurements of typical samples.

Solutions required
Electrode fill solution
900011     4M KCl with Ag/AgCl filling solution, 5 x 60 mL bottles

Electrode storage solution
910001      pH electrode storage solution, 475 mL bottle

pH buffers
910168     pH 1.68 buffer, NIST traceable, 475 mL
910104     pH 4.01 buffer, color coded red, NIST traceable, 475 mL
910105     pH 5.00 buffer, color coded orange, NIST traceable, 475 mL
910686     pH 6.86 buffer, DIN standard, NIST traceable, 475 mL
910107     pH 7.00 buffer, color coded yellow, NIST traceable, 475 mL
910918     pH 9.18 buffer, DIN standard, NIST traceable, 475 mL
910110     pH 10.01 buffer, color coded blue, NIST traceable, 475 mL
910112     pH 12.46 buffer, NIST traceable, 475 mL
910199     Standard All-in-One pH buffer kit, includes pH 4.01, 7.00 and 10.01 buffers, 475ml each, pH
                 electrode storage solution, 475ml, and 12 mm electrode storage bottle

pH cleaning solution kit
900020     Cleaning solution A and C, 30 ml each. B and D, 60 ml each

Items included with
900011     4M KCl with Ag/AgCl filling solution 60mL 1 bottle

Warranty period
12 months from date of purchase
Specifications
DescriptionpH Combination electrode
Diameter (English) Body0.47 in.
Diameter (Metric) Body12 mm
Internal ReferenceAg/AgCl pH
Length (English)4.7 in.
Length (Metric)120 mm
Precision0.02
Temperature (English) Operating32°F to 212°F
JunctionSure-Flow
MaterialEpoxy Body
Temperature (Metric) Operating0°C to 100°C
TypeCombination pH Electrode
pH Range0 to 14
Unit SizeEach
