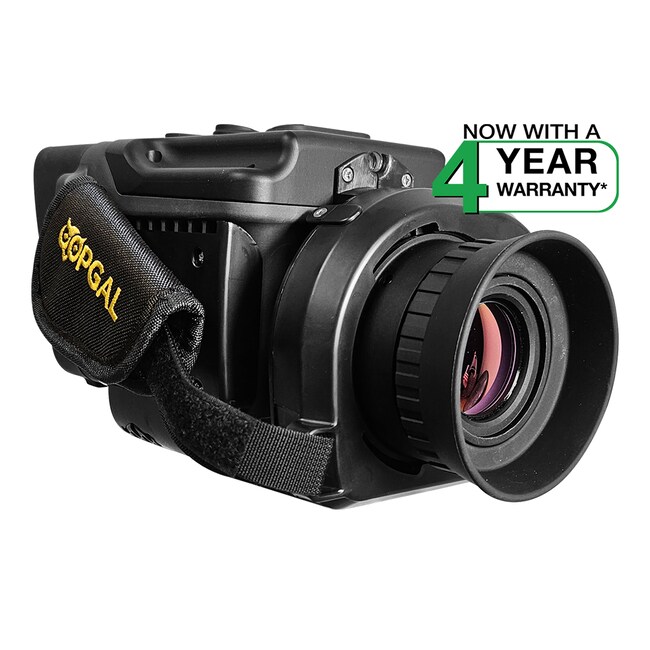

OPGAL EyeCGas CO<sub>2</sub> Optical Gas Imaging Camera for Carbon Dioxide
Thermo Scientific™

OPGAL EyeCGas CO2 Optical Gas Imaging Camera for Carbon Dioxide

Pinpoint tiny CO2 leaks fast with EyeCGas CO2, a rugged, intrinsically safe OGI camera built for safety, accuracy, and reliability in harsh industrial environments.
Have Questions?
Catalog NumberType
ECG30C-30Q-CO2Gas Detector
Catalog number ECG30C-30Q-CO2
Price (CNY)
-
Type:
Gas Detector
The OPGAL EyeCGas™ CO2 Optical Gas Imaging Camera provides a fast, reliable, and intrinsically safe solution for detecting carbon dioxide leaks in industrial operations. Engineered for use in hazardous environments, the camera enables users to identify even very small CO2 concentrations from a safe distance. With multispectral OGI capability, thermographic imaging, built-in quantification, and seamless connectivity, the EyeCGas CO2 camera helps reduce downtime, avoid costly emissions, and enhance inspection efficiency. Its rugged, sealed construction and compatibility with LDAR workflows make it a powerful tool for CO2 leak detection and verification, particularly useful for carbon capture, utilization and storage (CCUS) applications.

The OPGAL EyeCGas CO2 Optical Gas Imaging Camera is designed specifically for carbon dioxide detection in demanding industrial and hazardous settings. Combining rugged engineering, advanced spectral filtering, and high sensitivity thermographic imaging, it provides exceptional performance for CO2 leak identification, verification, and quantification.

Key Capabilities and Benefits

  • CO2 leak detection: Quickly detects small CO2 concentrations, supporting maintenance, safety, and emissions avoidance programs.
  • Thermographic imaging: Includes temperature measurement capability and multiple color palettes for enhanced visualization.
  • Multi spectral OGI: Replaceable spectral filters optimized for CO2 using dedicated 4.1–4.4 µm and optional 4.0–4.7 µm ranges.
  • Intrinsically safe: Certified for IECEx Zone II, ANSI, CSA Class I & Class II Div.2, and ATEX hazardous environments.
  • Built-in quantification: Real time and offline quantification supported via built-in tools, EyeCSite software, or compatible third party systems.
  • Connectivity: Built-in Wi-Fi, GPS, hotspot, Bluetooth, and USB data transfer.
  • LDAR ready: Integrates with various analyzers and software platforms.
  • Rugged & sealed: Engineered specifically for gas leak detection in harsh oil & gas conditions.
  • Free firmware upgrades: Receives ongoing camera improvements at no additional cost.
Specifications
Accuracy±1°C (0 to 100°C); ±2% (>100°C); ±2°C (-20 to 0°C)
Battery Life>4.5 hours continuous operation
Battery TypeRechargeable Li-ion, 7.4 V
Certifications/ComplianceCSA C22.2 No. 213-M1987, Non-Incentive Electrical Equipment for Use in Class I, Division 2, ANSI/ ISA-12.12.01 – Class I and II, Division 2, and Class III, ATEX. Intrinsically safe for Zone 2 ratings as: Ex II 3 GD; Ex ic nA nC IIC T6 Gc; Ex ic tc IIIC T85°C DC
ColorRainbow, Iron, ISO red, ISO green, Grey Scale, Vivid
Detection LimitsDetector pitch: 30 µm
Detector TypeCooled MCT FPA
Dimensions (L x W x H)230 x 110 x 130 mm (9 x 4.3 x 5.1 in.)
Display Type3.5 in. LCD, 640 x 480 pixels
IP RatingIP65
IncludesCamera, 2x batteries, charger, USB cable, neck strap, glare shield, carrying case, cleaning kit
Measurement Range-20°C to 50°C
Mounting OptionsUNC 1/4 in. -20
Optical Filters StandardStandard: 4.1–4.4 µm for CO2; Optional: 4.0–4.7 µm
ResolutionIR Resolution: 320 x 240 pixels
Temperature Range (English)-4°F to 662°F
Temperature Range (Metric)-20°C to 350°C
Voltage7.4 V
Warranty4 years (Detector & Cooler – 2 years; Batteries – 1 year)
Weight (English)5.9 lb
Weight (Metric)2.6 kg
Components MeasuredCarbon Monoxide
TypeGas Detector
Unit SizeEach
