Thermo Scientific™

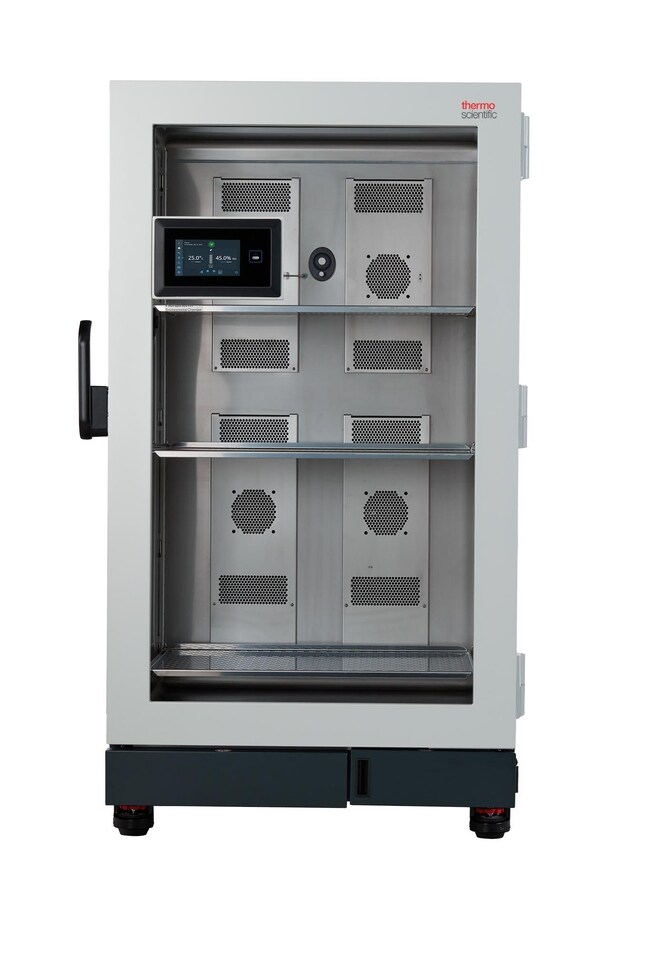

Heratherm Stability Chamber 750 L
Gain confidence in your product when testing stability and shelf life with robust Heratherm Stability chambers designed to meet a variety of quality control demands.
Have Questions?
更改视图
| 货号 | 门样式 |
|---|---|
| ESG750 | Glass |
| ESS750 | Solid (outer), Glass (inner) |
货号 ESG750
价格（CNY)申请报价
-
门样式:
Glass
Temperature and humidity controls, well suited for stability testing, shelf life testing, and environmental testing.
- Broad relative humidity range to cover many applications, including humidity levels below ambient.
- Environmentally friendly water-efficient humidification system.
- Minimal condensate in standard applications.
- Integrated water tank; fixed water connection for in-house purified water option available.
- Energy-efficient Peltier technology supports temperature stability and uniformity with lower energy usage compared to traditional compressors and without hazardous refrigerant.
- Two access ports for independent data capture, and internal documentation of set and actual parameter values, along with event log to meet 21 CFR Part 11 requirements for process documentation.
- Data retrieval via USB stick, Ethernet connection, or Thermo Cloud via OPC-UA standard.
- Sample and process protection: Assign personalized access with user IDs; restrict access with standard door lock, or optional automated door lock; various alarm options to prevent operator of process issues.
- Intuitive touchscreen interface with easy programmability of temperature cycles and process duration.
- Simplified setup with no technician required; install using standard power cord.
- IQ/OQ qualifications and other services available; visit thermofisher.com/chamberservice.
- Inner glass door keeps environment stable, even when opening outer door. Glass door also available.
- Rounded corners and removable shelving offer easy cleaning to help prevent cross-contamination.
- Duplex interior electrical sockets for use of stirrers, shakers or other equipment inside the chamber are available as a factory-installed option. Choose from a variety of country-specific sockets. (Ordered with separate order code)
规格
警报类型Audible and Visible
容积（英制）26.5 cu.ft.
托架容量（英制）66.1 lbs
托架容量（公制）30 kg
认证/合规UL, CE
数据输出USB, Ethernet
深度（英制）34.84 in.
内部深度（英制）24.8 in.
深度（公制）885 mm
内部深度（公制）630 mm
显示器7 in. touchscreen user interface
门样式Glass
电气要求100/240V, 50/60 Hz, 1400W
高度（英制）72.24 in.
内部高度（英制）57.09 in
高度（公制）1835 mm
内部高度（公制）1450 mm
湿度范围10 - 90% RH
湿度分辨率0.1% RH
照明灯No
脚轮数量4
插头类型Nema 5-20P
端口2 access ports
可编程Temperature and humidity ramping
托架面积（英制）4.9 ft²
托架面积（公制）0.46 m²
托架材料Stainless Steel (304/1.4301)
运输重量（英制）820 lbs
运输重量（公制）372 kg
温度控制Microprocessor - programmable
温度分辨率0.1°C
温度稳定性≤ ±0.1°C @ 20°C to 37°C
温度均匀性≤ ±0.5°C @ 20°C to 37°C
类型Humidity Chamber
质保期24 months
水消耗量0.15 to 1 L per day
水电阻率0.05 - 1 MΩ
瓦数1400 W
宽度（英制）42.52 in.
内部宽度（英制）33.07 in.
托架宽度（英制）22.6 in.
宽度（公制）1080 mm
内部宽度（公制）840 mm
托架宽度（公制）795 mm
容量（公制）750 L
箱体材料Powder-coated Cold Rolled Steel
材质粉末涂层冷轧钢
搁板数量3
相对湿度10 to 90%
温度范围（公制）0 to 70°C
电压100/115/220/230 V
Unit SizeEach
