TDE Series -86°C Ultra-Low Temperature Freezers
TDE Series -86°C Ultra-Low Temperature Freezers

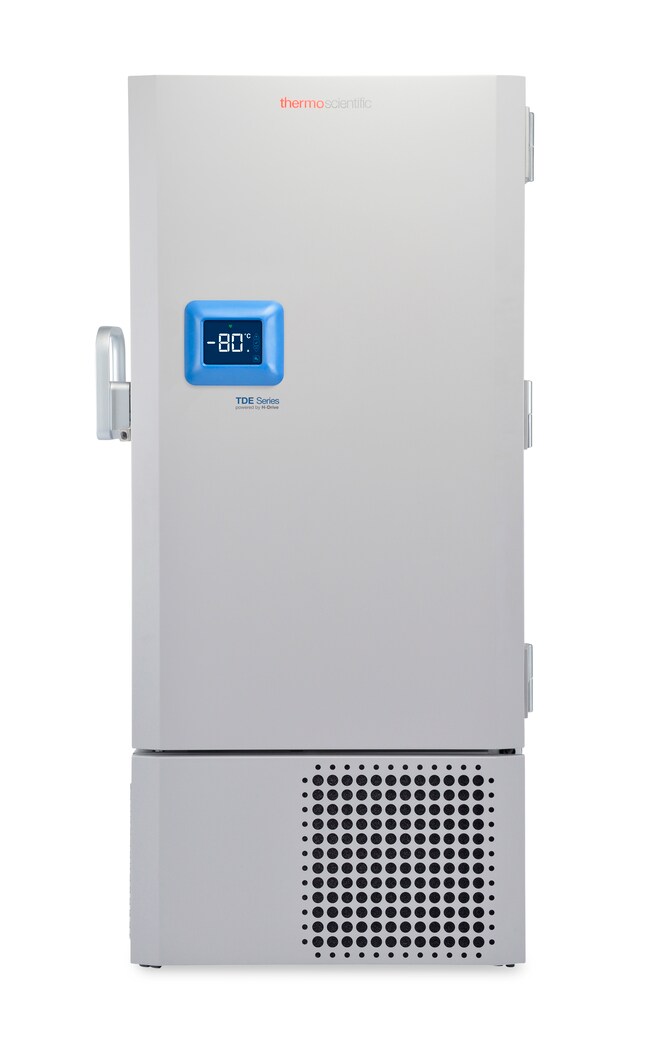

Actual product may vary
Thermo Scientific™

TDE Series -86°C Ultra-Low Temperature Freezers

Part of the Standard Performance (STP) family, Thermo Scientific™ TDE Series ultra-low temperature freezers, powered by H-drive, feature four upright models, maximizing storage capacity from 30,000 up to 60,000 2 mL vials. The TDE Series is a sustainable and reliable solution with ultimate sample security and operational savings for every lab.
Have Questions?
更改视图buttonViewtableView
货号容量(公制)电气要求认证/合规
TDE60086FV-ULTS816 L230V, 50 Hz, 1 PhaseCE
TDE30086FA-ULTS422 L115V, 60 Hz, 1 PhaseCE
TDE30086FD-ULTS422 L208-230V, 60 Hz, 1 PhaseCE
TDE30086FV-ULTS422 L230V, 50 Hz, 1 PhaseCE
TDE40086FA-ULTS549 L115V, 60 Hz, 1 PhaseCE
TDE40086FD-ULTS549 L208-230V, 60 Hz, 1 PhaseCE
TDE40086FV-ULTS549 L230V, 50 Hz, 1 PhaseCE
TDE50086FA-ULTS682 L115V, 60 Hz, 1 PhaseCE
TDE50086FD-ULTS682 L208-230V, 60 Hz, 1 PhaseCE
TDE50086FV-ULTS682 L230V, 50 Hz, 1 PhaseCE
TDE60086FA-ULTS816 L115V, 60 Hz, 1 PhaseCE
TDE60086FD-ULTS816 L208-230V, 60 Hz, 1 PhaseCE
12 选项
货号 TDE60086FV-ULTS
价格(CNY)/ Each
-
申请报价
容量(公制):
816 L
电气要求:
230V, 50 Hz, 1 Phase
认证/合规:
CE

Part of the Standard Performance (STP) family, Thermo Scientific™ TDE Series ultra-low temperature freezers, powered by H-drive, feature four upright models, maximizing storage capacity from 30,000 up to 60,000 2 mL vials.

The TDE Series is a sustainable and reliable solution with ultimate sample security and operational savings for every lab. From our first ULT freezer in 1940 to today, the combined experience of REVCO, Forma Scientific, Jewett, HERAFreeze, and other families of products continues to drive our ability to deliver industry-leading innovations that help accelerate science and health care.

Performance

  • Powered by H-drive's hydrocarbon technology, these systems save up to 25% in energy usage and heat rejection over conventional refrigerant ultra-low freezers1
  • Designed for daily usage, recovers cabinet temperature 20% faster after opening the door.2
  • A quiet sound output below 53 dBA, enables the freezer to come out of the hallway and into the lab
  • Meets ±10°C validation protocols at -80°C with strong peak variation and steady-state temperature variation
  • Natural hydrocarbon refrigerants reduce system operating stresses promoting outstanding reliability and worry-free sample protection

User Friendly

  • The H-drive Information Center (HIC) combines easy to read temperature with simple capacitive touch buttons in a 5.6 inch display
  • Four capacities (300, 400, 500 and 600 2-inch box) to accommodate a variety of storage needs and lab footprint specifications
  • All models contain four inner doors allowing for easy sample access without exposing greater freezer content to ambient conditions
  • Improved customer convenience with new ergonomically designed handle, high contrast easy-to-read display, and comfortable easy-access shelf locations.
  • Compatible with most racking systems including a full range of Thermo Scientific™ racks for boxes, microplates, Thermo Scientific™ Matrix™ and Nunc CryoBank™ tubes
  • Security features including alarm settings and key-lock door

Sustainability

  • Lower HVAC costs as a result of less heat emission into the environment
  • Natural refrigerants and Polyurethane foam with non-HFC blowing agent having zero GWP, making the Series compliant with the U.S. Environmental Protection Agency's Significant New Alternatives Policy (SNAP), the European Union's F-Gas and other sustainability standards

Get Connected

The Thermo Scientific™ DeviceLink™ Connect remote monitoring solution helps provide peace of mind by enabling you to keep track of your equipment anytime, anywhere. This system supports independent sensors to monitor your instrument, but it can also be connected via serial port directly to the instrument, harnessing the on-board telemetry data, alarms, and events. All information is transmitted to the Thermo Fisher Connect cloud platform where you have 24/7 access to the information via InstrumentConnect's web- and mobile-based applications. For more information visit www.thermofisher.com/dlc.

Compatible DeviceLink Connect System

  • DLCKTULTS101 — Ultra-low temperature freezer

*Each kit includes a DeviceLink Connect system, 1-year basic monitoring subscription, power cable, commissioner USB, mounting hardware, and an applicable serial or USB cable.

Independent DeviceLink Connect Sensors

  • DLCSKTEMP001 — DeviceLink Connect PT100 (-200°C to +600°C) temperature sensor and Smart-Cable adapter
  • DLCSKCURT001 — DeviceLink Connect current transducer (0-50A) with Smart-Cable adapter
  • DLCPTDOOR001 — Door Switch

Footnotes:

  1. Internal data comparing 11.2 kWh/day to UXF600 = 14.9 kWh/day. Data on file.
  2. Typical freezer test data based on internal testing in ambient temperature at 20°C; Typical standard validation protocol of ±10°C.
规格
容积(英制)28.8 cu. ft.
容量(公制)816 L
温度范围-50°C to -86°C
门样式Latched Pull-out Swing
门数量1 (1 compartment)
内门4
门开时温度恢复21 minutes
铰链侧Left
箱体材料Cold-rolled Steel
箱体材料冷轧钢
隔热Vacuum, Foam
内部Painted Steel
表面抛光Powder-coated Steel
托架3
抽屉None
架数量24
每套件架数6
认证/合规CE, cUL, UL, ISO 13485
类型立式
脚轮4
颜色Gray
冷凝器类型Fan-forced
适用于(应用)Samples storage
适用于(设备)Storage racks, sample vials, storage boxes
端口Yes
标准使用寿命10 years
质保期5 years part
除霜手动
-80C 下的峰值变化+5.8c / -3.3c
-80 C 至 -50C 热机时间352 minutes
水冷No water cooling
外部深度(英制)38.5 in.
内部深度(英制)28.3 in
外部深度(公制)97.7 cm
内部深度(公制)71.9 cm
外部高度(英制)78 in.
内部高度(英制)51.2 in.
外部高度(公制)1981 mm
内部高度(公制)1300 mm
外部宽度(英制)43.8 in.
内部宽度(英制)34.4 in.
外部宽度(公制)1113 mm
内部宽度(公制)874 mm
监测选项Yes
存取安全Key Lock Standard, Padlock Compatible
图表记录仪Optional
数据输出RS485/4-20mA output/Dry Contacts
设定点安全Yes
备用系统CO2 or LN2 Optional
智能查看兼容性Yes
安培数6.5 Amp
插头类型EU
电压230 V
电气要求230V, 50 Hz, 1 Phase
频率50 Hz
单门
使用能量11.9kWh/day
电压补偿Yes
样品瓶容量60,000
压缩机H-drive
制冷剂R290 / R170+R290 Mix
重量(英制)709 lbs.
重量(公制)322 kg
维持60,000 Sample Vials
冻存架容量24
Unit SizeEach
