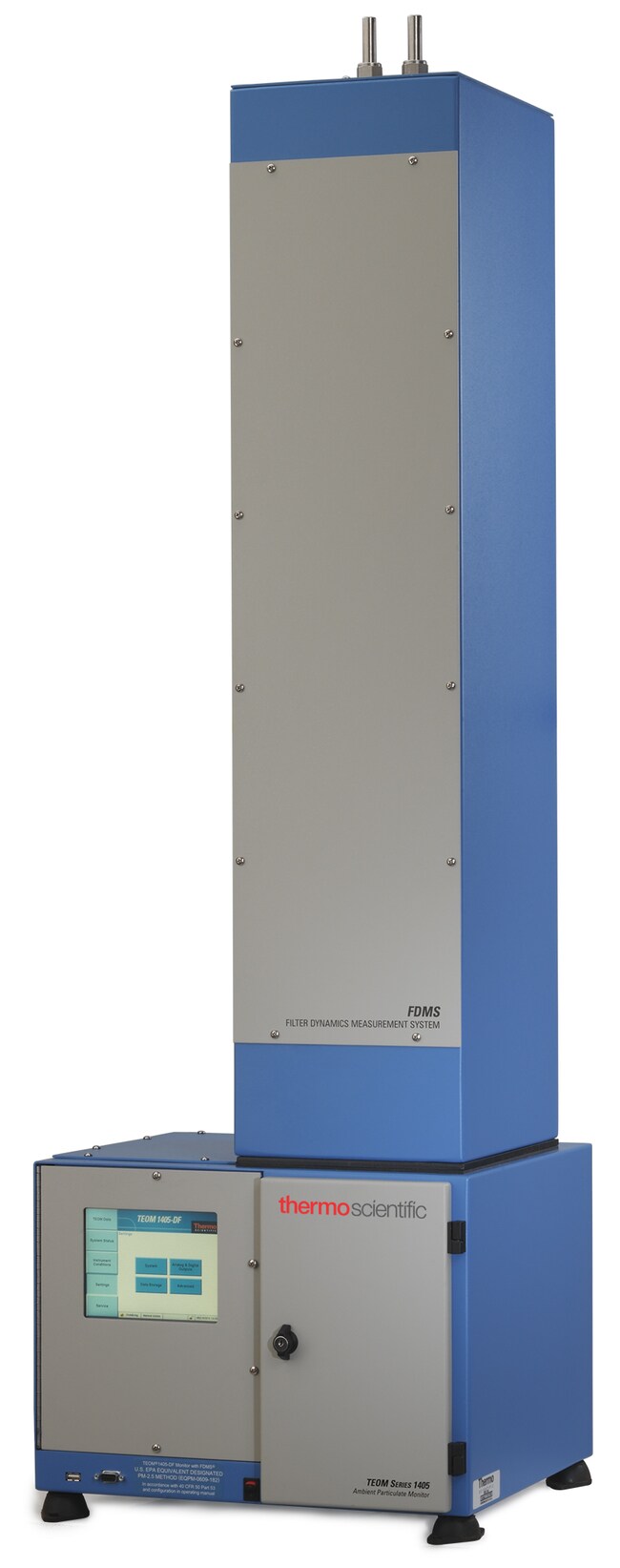

1405-DF TEOM™ 双通道连续环境空气监测仪
Thermo Scientific™

1405-DF TEOM™ 双通道连续环境空气监测仪

This product has been discontinued (effective June 30, 2026). We will offer technical support and service support as allowed by parts availability.
Have Questions?
货号准确度
TEOM1405DF±0.75%
货号 TEOM1405DF
价格(CNY)
-
准确度:
±0.75%

This product has been discontinued – effective June 30, 2026. Aftermarket support including remote technical support and some field service will continue to be available as well as spare parts based on material availability.

At Thermo Fisher Scientific, we provide our valued customers with the products, solutions, and support that enable you to make the world healthier, cleaner, and safer.

To ensure we can continue to offer innovation, quality, value, and acceptable lead times we continuously evaluate our portfolio and take the tough decisions to discontinue products where necessary.

规格
准确度±0.75%
安培数2.25 至 4.25 A
认证/合规设计符合:CE EN 761326:1997 + A1:1998 + A2:2001 + A3:2003 和 EN 61010-1;UL 61010-1:2004;CSA C22.2 No. 61010-1:2004 和 FCC Part 15 Subpart B, Class B
数据点用户指定变量的内部数据记录;
描述配备滤膜动态测量系统的 1405-DF 型 TEOM 双通道连续空气监测仪
尺寸(长 x 宽 x 高)17 x 19 x 55 in. (43.2  x 48.3 x 140 cm)
电气要求10 至 240 V,440 V 47/63 Hz
频率47/63 Hz
高度(英制)55 in.
高度(公制)140 cm
长度(英制)17 in.
长度(公制)43.2 cm
测量方法锥形元件微量振荡天平 (TEOM) 技术
测量范围0至 1,000,000 μg/m3
输出8 路用户定义的模拟输出(0-1 或 0-5 VDC)、嵌入 FTP 服务器的以太网、US、RS-232 和 RS-485;触控屏用户界面和 ePort 软件
精确度±2 μg/m3(1小时),±1 μg/m3(24小时)
分辨率0.1μg/m3
工作温度(英制)46.4°F 至 77°F
电压10/240/440 V
重量(英制)83 lb.
重量(公制)38 kg
宽度(英制)19 in.
宽度(公制)48.3 cm
流速12 L/min。
输入4路平均模拟输入(0至 5 VDC),用户自定义转换为工程单位
工作温度(公制)8°C 至 25°C
Unit SizeEach
