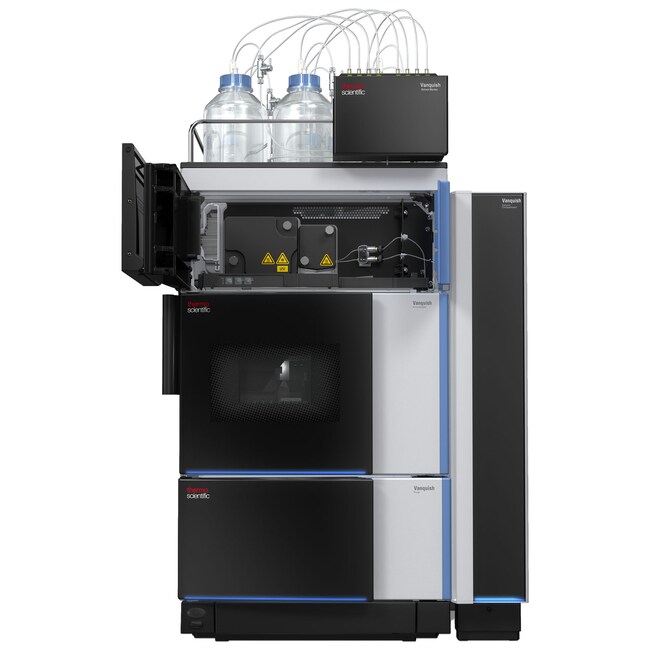

Vanquish™ Diode Array Detectors and Multiple Wavelength Detectors
Experience ultra-wide dynamic range when you use Thermo Scientific™ Vanquish™ Diode Array Detectors and Multiple Wavelength Detectors.
Have Questions?
Change view
| Catalog Number | Type | Wavelength Range |
|---|---|---|
| VH-D10-A | Diode Array Detector | 190 to 680 nm |
| VC-D11-A-01 | Diode Array Detector | 190-800 nm |
| VC-D12-A-01 | Multiple Wavelength Detector | 190-800 nm |
| VF-D11-A-01 | Diode Array Detector | 190–800 nm |
Catalog number VH-D10-A
Price (CNY)Request A Quote
-
Type:
Diode Array Detector
Wavelength Range:
190 to 680 nm
Get the best performance, reliability, and flexibility in HPLC and UHPLC detection with Thermo Scientific™ Vanquish™ Diode Array Detectors (DAD) and Multiple Wavelength Detectors (MWD). These detectors offer excellent linearity and optimized noise performance, and feature an ultra-wide dynamic range to allow detection of highly concentrated main compounds alongside trace-level impurities.
In addition, the Vanquish DAD HL uses Thermo Scientific™ LightPipe™ technology to achieve the best signal-to-noise performance through a combination of low baseline noise, a very long light path, and minimal dispersion.
Vanquish DAD features
- Industry leading linearity with up to 2.7 AU
- Reduced interfering refractive index and thermal effects means less baseline drift and more reliable peak integration.
- Data acquisition at rates up to 250 Hz using up to 10 absorption channels and one spectral field delivers the best support of ultrafast separations.
- Easy-to-use detector with intuitive user interaction, convenient flow cell and lamp usage tracking, and the integrated wavelength validation through holmium oxide filter.
Specifications
DescriptionVanquish Diode Array Detector HL
Detection ModeUV-vis Detection (Up to 10 Channels)
Dimensions (L x W x H)160 mm x 420 mm x 620 mm (6.3 in. x 16.5 in. x 24.4 in.)
Drift< 0.5 mAU/hour at 230nm
Electrical Requirements100–240 V AC, 50/60 Hz, max. 150 W/255 VA
Flow Cell VolumeStandard, LightPipe flow cell, 10mm
High Sensitivity, Light Pipe flow cell, 60mm
LightPipe diagnostic cell
High Sensitivity, Light Pipe flow cell, 60mm
LightPipe diagnostic cell
GLP FeaturesPredictive performance functions: lamp age and ignitions, lamp intensity degradation, leak detection, service monitoring period.
All system parameters logged in the Chromeleon CDS Audit Trail.
All system parameters logged in the Chromeleon CDS Audit Trail.
LampDeuterium lamp
Linearity< 5% at 2.0 AU (typically < 5% (at 2.5 AU))
Max. Cell Operating PressureLimit 6 MPa (60 bar, 870 psi)
Noise< ± 3 μAU (at 230 nm (standard flow cell, bandwidth: 4 nm, slit width: 4 nm; time constant: 2 s))
No. of Channels10 + 3D field
PC ConnectionUSB 2.0; 3-port-HUB to connect further Vanquish modules
Photodiode Array1024 element
Safety FeaturesPower-up diagnostics of optics, cooling fans, motors and electronics. Leak detection and safe leak handling.
Slit Width1 mm, 2 mm, 4 mm, 8 nm
Spectral BandwidthPixel resolution: 0.5nm (average)
Optical resolution: 1nm (FWHM with 1nm slit width)
Optical resolution: 1nm (FWHM with 1nm slit width)
Temperature Range5 to 35°C; 20 to 80% RH (non-condensing)
Validation FunctionsInternal validation with holmium oxide filter
Wavelength Accuracy± 1 nm
Wavelength Range190 to 680 nm
Wavelength Repeatability± 0.1 nm
Weight (Metric)17 kg
Data Collection Rate200 Hz Max.
Detector TypeSingle-Beam
TypeDiode Array Detector
Unit SizeEach
