Thermo Scientific™

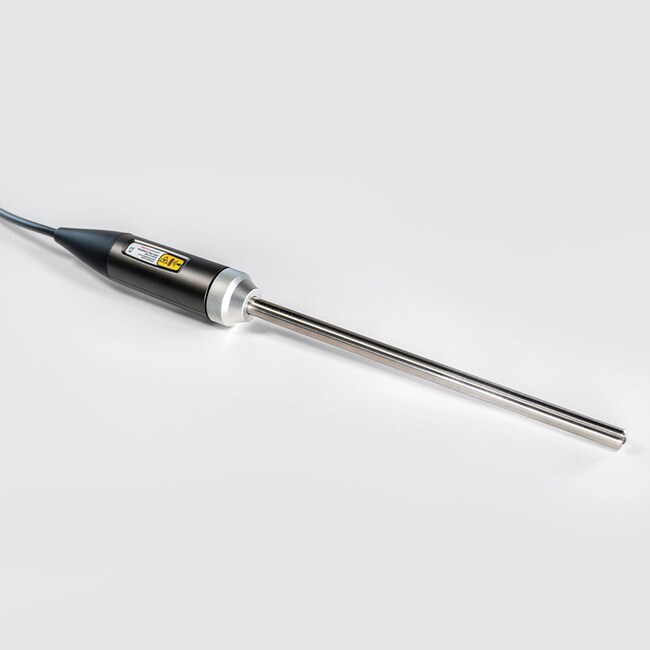

MarqMetrix Performance BallProbe Sampling Optic
The Thermo Scientific™ MarqMetrix™ Performance BallProbe™ is built for lab and industrial use, offering sensitive TouchRaman Immersion measurements in moderate chemical environments across various sample types.
Have Questions?
更改视图
| 货号 | 产品类型 | 光学设计 |
|---|---|---|
| 840-401300 | BallProbe | 8 mm diameter UV-grade sapphire ball |
| 840-401700 | BallProbe | 6 mm diameter UV-grade sapphire ball |
| 840-401800 | BallProbe | 3 mm diameter UV-grade sapphire ball |
| 840-399700 | BallProbe with Fiber Head | 8 mm diameter UV-grade sapphire ball |
| 840-400200 | BallProbe with Fiber Head | 6 mm diameter UV-grade sapphire ball |
| 840-400300 | BallProbe with Fiber Head | 3.mm diameter UV-grade sapphire ball |
货号 840-401300
价格（CNY)申请报价
-
产品类型:
BallProbe
光学设计:
8 mm diameter UV-grade sapphire ball
The Thermo Scientific™MarqMetrix™ Performance BallProbe™ Sampling Optic is designed to withstand moderate chemical environments in laboratory and industrial settings. The standard 0.5 in. diameter MarqMetrix Performance BallProbe Sampling Optic utilizes our largest spherical sapphire ball lens and 316 L stainless steel, enabling highly sensitive TouchRaman Immersion Technology measurements across a wide range of sample types. The MarqMetrix Performance BallProbe Sampling Optic has three standard diameters and chassis length options and is also available in a bundle with an interchangeable fiber head.
Features and benefits
- Accurate and repeatable measurements
- Samples liquids, solids, slurries, powders, and heterogeneous mixtures
- Wide range of chemical compatibility and resistance to high-temperatures
- Ease of use eliminates user-to-user variation
Applications
- Biopharmaceutical manufacturing
- Pharmaceutical manufacturing
- Food and beverage processing
- Oil and gas processing
- Polymer and plastic manufacturing
- Chemical and hazardous applications
Operating conditions
- Suitable for intermittent exposure to most dilute and concentrated acids (hot and cold), bases, and most organic solvents, including ethanol, THF, ethyl acetate, acetone, DCM, toluene, pentane, and acetonitrile
- Avoid exposure to aqua regia, heated formic acid, mixed acid, TFAA
规格
Compatible Wavelengths500 to 1100 nm
描述1/2 in. Performance BallProbe (200 mm) Accepts a collimated laser beam up to 7.1 mm (0.275 in.) in diameter
适用于（设备）MarqMetrix All-In-One Process Raman Analyzer
材料High-temperature epoxy (wetted), Stainless Steel (316L)
光学设计8 mm diameter UV-grade sapphire ball
压力设计条件6000 psi (413 bar)
探针长度8.5 in. (200 mm)
探头外径0.050 in. (12.7 mm)
温度范围（公制）- 20°C to 150°C
显示器No Display
产品类型BallProbe
Unit SizeEach
