Compact Digital Mini Rotator
Compact Digital Mini Rotator
Thermo Scientific™

Compact Digital Mini Rotator

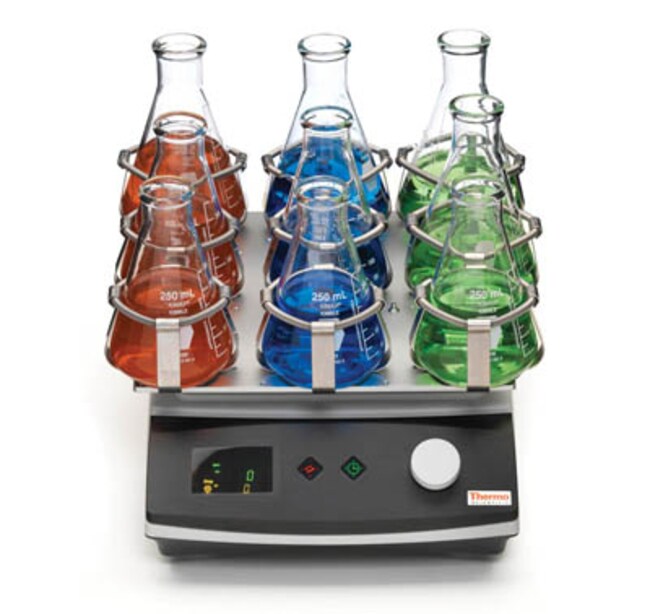

Realize maximum flexibility and high quality with this compact, easy-to-use Rotator/Shaker—smooth, quiet orbital mixing for beakers, flasks, tubes, dishes and more.
Have Questions?
货号插头类型
88880026带多种插塞类型的线材套件
货号 88880026
价格(CNY)
-
插头类型:
带多种插塞类型的线材套件
Realize maximum flexibility and high quality with the easy-to-use Thermo Scientific™ Compact Digital Mini Rotator/Shaker, which provides smooth, quiet orbital mixing for beakers, flasks, tubes, dishes and more. Choose from 5 different top options to customize unit to meet exact application needs. PID control ensures consistent and smooth orbital motion, with digital speed control from 50-300rpm. Display both current and set RPM simultaneously. Timer Range: Continuous or 1min to 99hrs 59min. Compact design ideal for placing in incubators (non-CO2), chambers, and refrigerators (2° to 60°C).
Compact design ideal for placing in incubators (non-CO2), chambers and refrigerators (up to 60°C). PID control ensures consistent and smooth orbital motion.
  • Digital Speed Control: 50 to 300rpm
  • Timer Range: Continuous or 1min to 99hrs 59min
Ordering Information:

Must purchase platform for use:
  • Rubber mat (250 x 250mm)
  • Dimpled mat
  • Universal harness
  • Universal attachment with adjustable bars
  • Bands for Universal harness
  • Universal Platform for clamps (clamps purchased separately)
  • 50mL flask clamps
  • 100mL flask clamps
  • 250mL flask clamps
  • 300mL flask clamps
  • 500mL flask clamps
  • 1L flask clamps
  • 2L flask clamps
Warranty: 2 years
对内部研究使用限制的免责声明:关于买方仅可将产品用于内部研究的任何限制事项并不适用于与此声明相关的网页上的产品。
规格
控制器类型Feedback Control PID
尺寸(长 x 宽 x 高)13 x 10.9 x 5.1 in. (334 x 276 x 130 mm)
显示器数字式
电气要求100/240 V, 50/60 Hz
频率50/60 Hz
高度(英制)5.1 in.
高度(公制)130 mm
长度(英制)13 in.
平台长度(英制)9.8 in.
长度(公制)334 mm
平台长度(公制)250 mm
载荷容量(英制)8.8 lb.
插头类型带多种插塞类型的线材套件
产品类型Rotator
运输重量(英制)17.6 lb.
运输重量(公制)8 kg
速控精准度±5 rpm at 100 rpm
温度范围(英制)39.2 至 140°F
计时器范围1分钟至 99:59 小时,连续
提供的保修和服务每 2 年
宽度(英制)10.9 in.
平台宽度(英制)9.8 in.
宽度(公制)276 mm
平台宽度(公制)250 mm
认证/合规CE
载荷容量(公制)4 kg
型号Compact Digital Mini Rotator
环行轨道13 mm
速度范围50 to 300 rpm
温度范围(公制)4°C 至 60°C
电压100/240 V
Unit SizeEach
