Attune™ NxT Filters

Name: Attune™ NxT Filters
SKU: A28874

The Attune NxT Acoustic Focusing Cytometer was designed to allow users to easily customize the instrument's optical layout to meet experiment needs or panel requirements.

更改视图

货号	产品类型	流式细胞仪激光线路	波长
A28874	Filter Kit	405 nm, 488 nm, 561 nm, 637 nm	Not Available
100022768S	Neutral Density Filter	488 nm	483 to 493 nm
100022769S	Dichroic Filter	405 nm	495 nm (Cut-off)
100022770S	Dichroic Filter	488 nm	555 nm (Cut-off)
100022771S	Dichroic Filter	561 nm	600 nm (Cut-off)
100022772S	Dichroic Filter	561 nm	650 nm (Cut-off)
100022773S	Dichroic Filter	637 nm	690 nm (Cut-off)
100022774S	Dichroic Filter	561 nm	740 nm (Cut-off)
100022758S	Emission Filter	488 nm	515 to 545 nm
100022759S	Emission Filter	561 nm	577 to 593 nm
100022763S	Emission Filter	637 nm	663 to 677 nm
100022752S	Dichroic Longpass Filter	405 nm	413 nm (Cut-off)
100022753S	Dichroic Longpass Filter	405 nm	496 nm (Cut-off)
100022754S	Dichroic Longpass Filter	561 nm	569 nm (Cut-off)
100022755S	Dichroic Longpass Filter	637 nm	646 nm (Cut-off)
100022756S	Emission Filter	405 nm	415 to 465 nm
100022757S	Emission Filter	405 nm	500 to 525 nm
100022760S	Emission Filter	488 nm	570 to 610 nm
100022761S	Emission Filter	405 nm	579 to 627 nm
100022762S	Emission Filter	561 nm	613 to 628 nm
100022764S	Emission Filter	488 nm	675 to 715 nm
100022765S	Emission Filter	405 nm	685 to 735 nm
100022766S	Emission Filter	488 nm, 561 nm	750 to 810 nm
100022767S	Emission Filter	637 nm	705 to 735 nm

24 选项

货号 A28874

价格（CNY)

产品类型:

Filter Kit

流式细胞仪激光线路:

405 nm, 488 nm, 561 nm, 637 nm

波长:

Not Available

The Attune NxT Acoustic Focusing Cytometer was designed to allow users to easily customize the instrument's optical layout to meet experiment needs or panel requirements.

Features and benefits

Installation simplicity with direct access dichroic mirrors and emission filters at top of instrument
Correct orientation facilitated through unique keyed design so they cannot be installed in the wrong direction
Visualization of filter location with color coding for laser excitation and numbers for appropriate location

Dichroic mirrors are specialized optical components that are used to reflect and direct light to ensure that emitted light from a sample is detected by the detectors. These mirrors come in in two main types: long pass and short pass.

Emission filters are designed to selectively permit the passage of specific wavelengths of light emitted by a fluorescent sample, while blocking other wavelengths, especially the excitation light.

Unable to find the optical filter that you need? The Attune NxT Custom Filter Holder Kit allows you to make custom emission or dichroic filters in order to customize the optical configuration of the instrument. Each kit contains sufficient parts to make two emission filters and two dichroic filters. The kit includes instructions for attaching the filter to the filter blade but does not include the glass filter.

For Research Use Only.

规格

流式细胞仪激光线路405 nm, 488 nm, 561 nm, 637 nm

产品线Attune Accessories

数量1 Kit

运输条件Room Temperature

波长Not Available

适用于（设备）Attune NxT Acoustic Focusing Cytometer

产品类型Filter Kit

Unit SizeEach

内容与储存

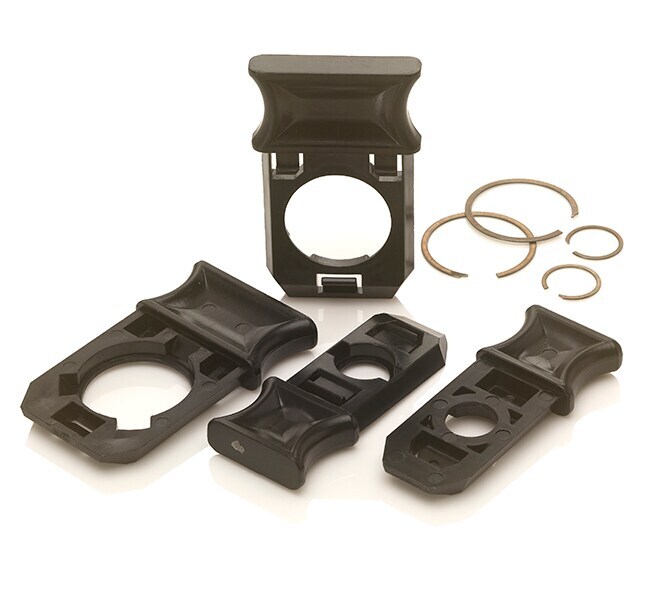

2 blank filter blades (dichoric); 2 blank filter blades (emission); 4 filter clips
